Series AF 3-pole Contactor Series

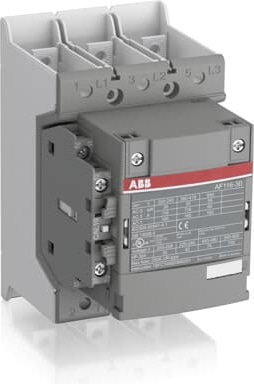

The AF116-30-11B-13 is a 3 pole - 690 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 55 kW / 400 V AC (AC-3) or 75 hp / 480 V UL and switching power circuits up to 160 A (AC-1) or 160 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
AF 3-pole Contactor Series
ABB's AF series includes a variety of 3-pole contactors designed for controlling 3-phase motors and power circuits. These contactors are categorized into several sub-series based on their current ratings and applications.
Each sub-series features integrated electronic coils that reduce energy consumption by up to 80%, provide surge protection, and allow operation across wide voltage ranges without coil changes. ABB also offers auxiliary contact blocks and accessories to enhance functionality
Technical Specifications
Dimensions
| Product Net Width | 90 mm |
| Product Net Depth / Length | 126 mm |
| Product Net Height | 150 mm |
| Product Net Weight | 1.3 kg |
Technical
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Rated Operational Voltage | Main Circuit 690 V |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 160 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 160 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 60 °C 145 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 70 °C 130 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 116 A |
| Rated Operational Current AC-3 (Ie) | (440 V) 55 °C 116 A |
| Rated Operational Current AC-3 (Ie) | (500 V) 55 °C 110 A |
| Rated Operational Current AC-3 (Ie) | (690 V) 55 °C 65 A |
| Rated Operational Current AC-3 (Ie) | (380 / 400 V) 55 °C 116 A |
| Rated Operational Current AC-3 (Ie) | (220 / 230 / 240 V) 55 °C 116 A |
| Rated Operational Current AC-3e (Ie) | (415 V) 60 °C 116 A |
| Rated Operational Current AC-3e (Ie) | (440 V) 60 °C 116 A |
| Rated Operational Current AC-3e (Ie) | (500 V) 60 °C 110 A |
| Rated Operational Current AC-3e (Ie) | (690 V) 60 °C 65 A |
| Rated Operational Current AC-3e (Ie) | (380 / 400 V) 60 °C 116 A |
| Rated Operational Current AC-3e (Ie) | (220 / 230 / 240 V) 60 °C 116 A |
| Rated Operational Power AC-3 (Pe) | (415 V) 55 kW |
| Rated Operational Power AC-3 (Pe) | (440 V) 75 kW |
| Rated Operational Power AC-3 (Pe) | (500 V) 75 kW |
| Rated Operational Power AC-3 (Pe) | (690 V) 55 kW |
| Rated Operational Power AC-3 (Pe) | (380 / 400 V) 55 kW |
| Rated Operational Power AC-3 (Pe) | (220 / 230 / 240 V) 30 kW |
| Rated Operational Power AC-3e (Pe) | (415 V) 55 kW |
| Rated Operational Power AC-3e (Pe) | (440 V) 75 kW |
| Rated Operational Power AC-3e (Pe) | (500 V) 75 kW |
| Rated Operational Power AC-3e (Pe) | (690 V) 55 kW |
| Rated Operational Power AC-3e (Pe) | (380 / 400 V) 55 kW |
| Rated Operational Power AC-3e (Pe) | (220 / 230 / 240 V) 30 kW |
| Rated Breaking Capacity AC-3 | 8 x Ie AC-3 |
| Rated Breaking Capacity AC-3e | 8.5 x Ie AC-3e |
| Rated Making Capacity AC-3 | 10 x Ie AC-3 |
| Rated Making Capacity AC-3e | 12 x Ie AC-3e |
| Short-Circuit Protective Devices | gG Type Fuses 250 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 928 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 160 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 379 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1160 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 536 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 2000 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1000 A |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour |
| Maximum Electrical Switching Frequency | (AC-2 / AC-4) 150 cycles per hour |
| Maximum Electrical Switching Frequency | (AC-3) 300 cycles per hour |
| Rated Operational Current DC-1 (Ie) | (110 V) 2 Poles in Series, 40 °C 145 A |
| Rated Operational Current DC-1 (Ie) | (220 V) 3 Poles in Series, 40 °C 145 A |
| Rated Operational Current DC-3 (Ie) | (110 V) 2 Poles in Series, 40 °C 145 A |
| Rated Operational Current DC-3 (Ie) | (220 V) 3 Poles in Series, 40 °C 145 A |
| Rated Operational Current DC-5 (Ie) | (110 V) 2 Poles in Series, 40 °C 145 A |
| Rated Operational Current DC-5 (Ie) | (220 V) 3 Poles in Series, 40 °C 145 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V |
| Rated Insulation Voltage (Ui) | acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Mechanical Durability | 5 million |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Coil Operating Limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V |
| Rated Control Circuit Voltage (Uc) | 60 Hz 100 ... 250 V |
| Rated Control Circuit Voltage (Uc) | DC Operation 100 ... 250 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 6 V·A |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 60 Hz 6 V·A |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage DC 3 W |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 130 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 130 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage DC 135 W |
| Operate Time | Between Coil De-energization and NO Contact Opening 37 ... 47 ms |
| Operate Time | Between Coil Energization and NO Contact Closing 25 ... 55 ms |
| Connecting Capacity Main Circuit | Flexible 1 x 10 ... 70 mm² |
| Connecting Capacity Main Circuit | Rigid Cu-Cable 2 x 10 ... 95 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible 2x0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Solid 2 x 1 ... 4 mm² |
| Connecting Capacity Auxiliary Circuit | Stranded 1 x 1 .... 4 mm² |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type | Main Circuit: Bars |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| General Use Rating UL/CSA | (600 V AC) 160 A |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 30 hp |
| Horsepower Rating UL/CSA | (208 V AC) Three Phase 30 hp |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 40 hp |
| Horsepower Rating UL/CSA | (440 ... 480 V AC) Three Phase 75 hp |
| Horsepower Rating UL/CSA | (550 ... 600 V AC) Three Phase 100 hp |
