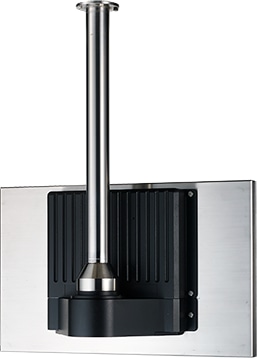

The IPPC-5211WS 21.5" fully sealed stainless steel multi-touch panel PC is IP69K rated and has a detachable product portfolio designed for OEMs and process manufacturing. It supports special functions via iDoor, iKey and an antenna, and is designed for HMIs which require better performance and functionality of machine-level interfaces used in Machineto-Machine (M2M), Internet of Things (IoT) etc which require extra protection for hygienic and harsh environments where the intrusion of dust, condensation and water jets is possible. The IPPC-5211WS can also perform a touch shut-down to avoid accidental operation.
Features
- Stainless steel chassis with IP69K waterproof rating
- The detachable product portfolio with accessories for various applications
- Intel® Celeron Processor J1900
- Operating temperature : 0 ~ 50°C
- 21.5" Full HD TFT LED LCD display
- 16:9 widescreen with PCT multi-touch
- Built-in function and home key button used for intuitive UI
- Fully flat glass front panel with 7H hardness
- Supports 4 GB DDR3L SO-DIMM
- Fanless cooling system
- Front LED indicator to show operating status
Documents
Technical Specifications
Environment
| Ingress Protection | All-around IP69K |
| Operating Temperature | 0~50 °C (32~122 °F) |
| Relative Humidity | 10~95% RH (non-condensing) |
| Storage Temperature | -20~60 °C (-4~140 °F) |
| Vibration Protection | 1 Grms, random |
General
| Humidity (Operating) | 10~95% RH (non-condensing) |
| Humidity (Storage) | 10~95% RH (non-condensing) |
| Rated voltage | 24 VDC (±10%) |
Hardware
| BIOS | AMI UEFI |
| Certification | CB, UL, CE, FCC Class A, CCC, BSMI |
| CPU | Intel® Celeron® J1900 2GHz, 2MB L2 |
| I/O | 1 x RS-232, 1 x RS-232/RS-485/RS-422, 1 x USB 2.0, 1 x USB 3.0 |
| LAN | 2 x 10/100/1000 Mbps |
| Memory | 1 x SO-DIMM with 4 GB DDR3L |
| OS Support | Microsoft® Windows 7, Microsoft® WES7, Microsoft® Windows 10 LTSB |
| Power consumption | 40.8 W @ 24 VDC |
| Power Input | 24 VDC ±10% |
| Power Requirement | 24 VDC ±10% |
I/O Interface
| Expansion | 1 x Full-size mPCIe Slot |
| LAN Ports | 2 x 10/100/1000 Mbps |
| Power Connector | 1 x 3-Pin Terminal Block |
| Serial Ports | 1 x RS-232, 1 x RS-232/422/485 |
| USB Ports | 1 x USB 3.0, 1 x USB 2.0 |
LCD Display
| Backlight Life (hrs) | 50,000 |
| Display size | 21.5" |
| Luminance (cd/m2) | 300 |
| Max. Resolution | 1920 x 1080 |
| Viewing Angle (H/V°) | 178/178 |
Mechanical
| Dimension (W x H x D) | 555 x 346.5 x 81 mm |
| Enclosure | Stainless steel + Die-cast aluminum |
| Form factor | Passive Cooling |
| Mounting | VESA, Pipe |
| Weight (Net) | 15.8 kg (34.83 lb) |
Power Requirements
| Input Voltage | 21~27 VDC |
Touchscreen
| Touch Type | PCAP |
