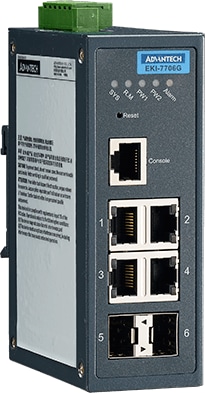

EKI-7706G-2F/2FI supports 4 Gigabit Ethernet ports and 2 SFP ports. It provides abundant ports to connect many devices and it is embedded with Advantech’s IXM function, which benefits users with fast deployment and can dramatically save engineers time and costs. The EKI-7706G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7706G series is equipped with X-Ring Pro which can achieve ultra-high-speed recovery times of less than 20 ms to ensure network stability.
Features
- 4 Gigabit Ethernet ports + 2 SFP ports
- SFP socket for easy and flexible fiber expansion
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1x (Port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- -40 ~ 85 °C wide-range operating temperature (EKI-7706G-2FI)
- Dual 12~48 VDC power input and 1 relay output
Documents
Technical Specifications
Certification
| Ethernet Standard | IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-32 |
| Shock | IEC 60068-2-27 |
| EMS | - |
| EMI | CE, FCC Class A |
| EMC | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Safety | UL 61010-2-201, EN 62368-1 (LVD) |
Environment
| Temperature (Max. Operating) | 60°C (140°F) |
| Temperature (Min. Operating) | -10°C (14°F) |
| Relative Humidity | 10~95% |
| Temperature (Operating Range) | -10 ~ 60°C (14 ~ 140°F) |
| Humidity (Operating Range) | - |
| Temperature (Storage Range) | -40 ~ 85°C (-40 ~ 185°F) |
Ethernet Communication
| RJ-45/SFP Combo Port Speed | - |
| RJ-45/SFP Combo Port Number | - |
| Fiber Port Optical Mode | - |
| Fiber Transmission Speed | 10/100/1000 Mbps |
| Fiber Port Number | 2 |
| RJ-45 Port Number | 4 |
| Fiber Transmission Distance | Up to 110 km |
| Fiber Port Connector Type | SFP cage |
| Fiber Port Interface | SFP |
| RJ-45 Transmission Distance | 100 m |
| Ethernet Standard | - |
| RJ-45 Port Connector Type | RJ-45 |
| RJ-45 Transmission Speed | 10/100/1000 Mbps |
MTBF
| Method | Telcordia, GB |
| Time | - |
Mechanism
| Mounting (Panel) | - |
| Enclosure (Plastic) | - |
| Mounting (Pole Mount) | - |
| Mounting (Stack) | - |
| Mounting (Wall) | Yes |
| Mounting (Rack Mount) | - |
| Mounting (DIN-rail) | Yes |
| Weight | 0.45 kg (1.0 lb) |
| IP Rating | IP30 |
| Dimensions (W x H x D) | 43 x 120 x 84 mm |
PoE Information
| Support PoE | - |
| PoE Output | - |
| PoE Budget | - |
| PoE Port Number | - |
Power
| Redundant Dual Inputs | - |
| Power Input (Battery) | - |
| Power Input (PoE) | - |
| Power Operating Current | 0.11A @ 48Vdc |
| Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Power Input (DC) | 12 ~ 48 VDC |
| Power consumption | 5.28W |
Protection
| Reverse Polarity | Present |
| Overload Current | - |
Switch Properties
| Jumbo Frame | - |
| Switch Fabric Speed | 12Gbbps x |
| Packet Buffer Size | 4.1M bit |
| MAC Table Size | 8K |
Warranty
| Warranty Period | 5 years |
