BSM6-30
Official DistributorBy ABB
SKU
ABBBSM630
MPN
GJL1201908R0001
Weight
0.01 kg

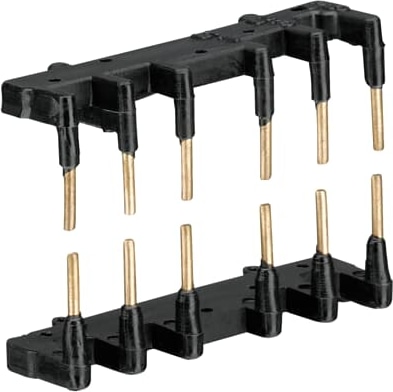

The BSM6-30 reversing connecting link is used to connect the main poles of two 3-pole contactors
mounted side by side. The BSM6-30 reversing connecting link is made up of 1 insulated upstream and 1 insulated downstream connections and suitable for all VB6/VB7 mini reversing contactors. The connector ensures a quick and safe connection of the contacts.
Technical Specifications
Supplier Information - CHABB001
| Country or Territory of Origin | Switzerland |
| Lead Time | 0 day |
| Made to Order | No |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | CHABB001EXPU |
| Warranty Return | Product under warranty must be returned |
Dimensions
| Product Net Width | 53 mm |
| Product Net Depth / Length | 15 mm |
| Product Net Height | 17 mm |
| Product Net Weight | 0.01 kg |
Technical
| Rated Insulation Voltage (Ui) | 690 V |
| Terminal Type | No Terminals |
| Suitable for | VB6 |
| Suitable for | VBC6 |
| Suitable for | VB6A |
| Suitable for | VBC6A |
| Suitable for | VB7 |
| Suitable for | VBC7 |
| Suitable for | VB7A |
| Suitable for | VBC7A |
| Suitable for Product Class | Mini Contactors |
| Product Name | Connecting Link |
Why Proax for ABB BSM6-30?
Proax is an authorized distributor of ABB BSM6-30 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | BSM630 |
| Pack Size | 1 |
