BER96-4
Official DistributorBy ABB
SKU
ABBBER964
MPN
1SBN083911R1000
Weight
0.25 kg

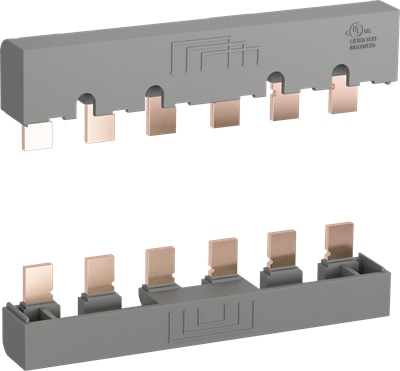

BER96-4 is a connection set for reversing contactors used to easily connect the main poles of two 3-pole AF80..AF96, AFC80..AFC96 or AFS80..AFS96 contactors mounted side by side.
The BER connection sets are made up of:
• 1 upstream and 1 downstream connections
• Insulated, solid copper bars
Technical Specifications
Dimensions
| Product Net Width | 140 mm |
| Product Net Depth / Length | 21.05 mm |
| Product Net Height | 40 mm |
| Product Net Weight | 0.25 kg |
Technical
| Standards | EN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
| Rated Operational Voltage | Main Circuit 1000 V AC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Screw Terminals |
| Suitable for | AF80 |
| Suitable for | AF96 |
| Suitable for | AFC80 |
| Suitable for | AFC96 |
| Suitable for | AFS80 |
| Suitable for | AFS96 |
| Suitable for | AF80B |
| Suitable for | AF96B |
| Product Name | Connection Set |
Why Proax for ABB BER96-4?
Proax is an authorized distributor of ABB BER96-4 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | BER964 |
| Pack Size | 1 |
