Name: BC7-30-10-04
Brand: ABB
SKU: ABBBC7301004
Price: 139.3900 CAD
Availability: BackOrder

All Motor Control & Protection Contactors

Official Distributor

By ABB

SKU

MPN

GJL1313001R0104

Weight

0.177 kg

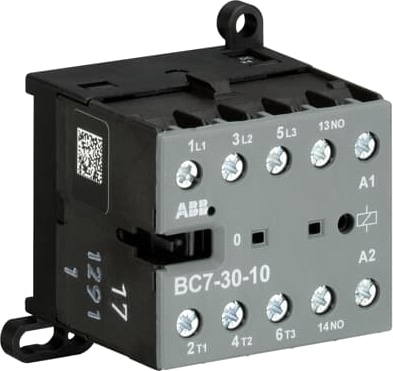

The BC7-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1) or switching of control signals. Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting.

Technical Specifications

Dimensions

Product Net Width	52.5 mm
Product Net Height	57.5 mm
Product Net Depth / Length	46.7 mm
Product Net Weight	0.175 kg

Technical

Number of Poles	3
Mini Contactor Type	Mini Contactor
Rated Operational Voltage	Auxiliary Circuit 690 V AC
Rated Operational Voltage	Auxiliary Circuit 250 V DC
Rated Operational Voltage	Main Circuit 690 V AC
Rated Operational Voltage	Main Circuit 220 V DC
Rated Frequency (f)	Control Circuit DC
Rated Frequency (f)	Main Circuit 60 Hz
Rated Frequency (f)	Main Circuit 50 Hz
Rated Frequency (f)	Main Circuit DC
Rated Impulse Withstand Voltage (U_imp)	Auxiliary Circuit 6 kV
Rated Impulse Withstand Voltage (U_imp)	Main Circuit 6 kV
Rated Insulation Voltage (U_i)	690 V
Rated Insulation Voltage (U_i)	acc. to UL/CSA 600 V
Number of Main Contacts NC	0
Number of Main Contacts NO	3
Rated Operational Current AC-1 (I_e)	(220 / 240 V) 40 °C 20 A
Rated Operational Current AC-1 (I_e)	(220 / 240 V) 55 °C 16 A
Rated Operational Current AC-1 (I_e)	(380 / 440 V) 40 °C 20 A
Rated Operational Current AC-1 (I_e)	(380 / 440 V) 55 °C 16 A
Rated Operational Current AC-1 (I_e)	(690 V) 40 °C 6 A
Rated Operational Current AC-1 (I_e)	(690 V) 55 °C 6 A
Rated Operational Power AC-3 (P_e)	(230 V) Three Phase 3 kW
Rated Operational Power AC-3 (P_e)	(400 V) Three Phase 5.5 kW
Rated Operational Power AC-3 (P_e)	(500 V) Three Phase 5.5 kW
Rated Operational Power AC-3 (P_e)	(690 V) Three Phase, NO 3 kW
Rated Short-time Withstand Current Low Voltage (I_cw)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 96 A
Number of Auxiliary Contacts NC	0
Number of Auxiliary Contacts NO	1
Rated Operational Current AC-15 (I_e)	(24 V) 4 A
Rated Operational Current AC-15 (I_e)	(120 V) 4 A
Rated Operational Current AC-15 (I_e)	(500 V) 2 A
Rated Operational Current AC-15 (I_e)	(220 / 240 V) 4 A
Rated Operational Current AC-15 (I_e)	(380 / 400 V) 3 A
Rated Operational Current DC-13 (I_e)	(24 V) 2.5 A
Rated Operational Current DC-13 (I_e)	(110 V) 0.7 A
Rated Operational Current DC-13 (I_e)	(220 / 240 V) 0.4 A
Conventional Free-air Thermal Current (I_th)	Main Circuit 20 A
Rated Control Circuit Voltage (U_c)	110 ... 125 V DC
Coil Operating Limits	(acc. to IEC 60947-4-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
Degree of Protection	Auxiliary Circuit Terminals IP20
Degree of Protection	Control Circuit Terminals IP20
Degree of Protection	Main Circuit Terminals IP20
Mechanical Durability	10000000 cycle
Minimum switching capacity	Auxiliary Circuit 17 V
Minimum switching capacity	Auxiliary Circuit 5 mA
Maximum Electrical Switching Frequency	(AC-1) 300 cycles per hour
Maximum Electrical Switching Frequency	(AC-15) 600 cycles per hour
Maximum Electrical Switching Frequency	(AC-3) 600 cycles per hour
Maximum Electrical Switching Frequency	(DC-1) 600 cycles per hour
Maximum Electrical Switching Frequency	(DC-13) 600 cycles per hour
Maximum Electrical Switching Frequency	(DC-3) 600 cycles per hour
Connecting Capacity Main Circuit	Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Connecting Capacity Main Circuit	Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Connecting Capacity Main Circuit	Flexible 1/2x 1 ... 2.5 mm²
Connecting Capacity Main Circuit	Rigid 1/2x 1 ... 4 mm²
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Connecting Capacity Auxiliary Circuit	Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Connecting Capacity Auxiliary Circuit	Flexible 1/2x 1 ... 2.5 mm²
Connecting Capacity Auxiliary Circuit	Rigid 1/2x 1 ... 4 mm²
Connecting Capacity Control Circuit	Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Connecting Capacity Control Circuit	Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Connecting Capacity Control Circuit	Flexible 1/2x 1 ... 2.5 mm²
Connecting Capacity Control Circuit	Rigid 1/2x 1 ... 4 mm²
Wire Stripping Length	Auxiliary Circuit 9 mm
Wire Stripping Length	Main Circuit 9 mm
Tightening torque	Auxiliary Circuit 0.8 ... 1.1 N·m
Tightening torque	Control Circuit 0.8 ... 1.1 N·m
Tightening torque	Main Circuit 0.8 ... 1.1 N·m
Recommended Screw Driver	M3
Recommended Screw Driver	Pozidriv 1
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting on DIN Rail	TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Power Loss	at Rated Operating Conditions AC-1 per Pole 1.4 W
Standards	IEC/EN 60947-1
Standards	IEC/EN 60947-4-1
Standards	IEC/EN 60947-5-1
Standards	UL 60947-1
Standards	UL 60947-4-1

Technical UL/CSA

Maximum Operating Voltage UL/CSA	Main Circuit 600 V AC
Full Load Amps Motor Use	(115 V AC) Single Phase 13.8 A
Full Load Amps Motor Use	(200 V AC) Three Phase 7.8 A
Full Load Amps Motor Use	(220 ... 240 V AC) Three Phase 9.6 A
Full Load Amps Motor Use	(230 V AC) Single Phase 10 A
Full Load Amps Motor Use	(440 ... 480 V AC) Three Phase 7.6 A
Full Load Amps Motor Use	(550 ... 600 V AC) Three Phase 6.1 A
Horsepower Rating UL/CSA	(115 V AC) Single Phase 0.75 Hp
Horsepower Rating UL/CSA	(200 V AC) Three Phase 2 Hp
Horsepower Rating UL/CSA	(220 ... 240 V AC) Three Phase 3 Hp
Horsepower Rating UL/CSA	(230 V AC) Single Phase 1.5 Hp
Horsepower Rating UL/CSA	(440 ... 480 V AC) Three Phase 5 Hp
Horsepower Rating UL/CSA	(550 ... 600 V AC) Three Phase 5 Hp
General Use Rating UL/CSA	(600 V AC) 16 A
Contact Rating UL/CSA	A600
Connecting Capacity Main Circuit UL/CSA	Stranded 1/2x 22-10 AWG
Connecting Capacity Auxiliary Circuit UL/CSA	Stranded 1/2x 22-10 AWG
Tightening Torque UL/CSA	Auxiliary Circuit 7 in·lb
Tightening Torque UL/CSA	Control Circuit 7 in·lb
Tightening Torque UL/CSA	Main Circuit 7 in·lb
