Official DistributorBy ABB
SKU
MPN
GJL1213001R0101
Weight
0.181 kg

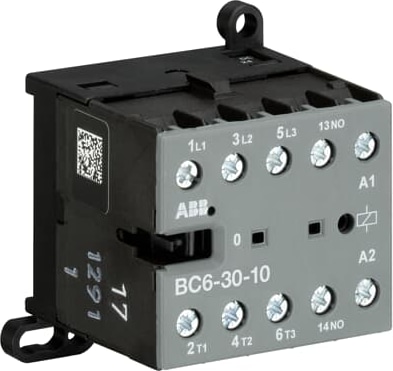

The BC6-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A (AC-1) or switching of control signals. Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting.
Technical Specifications
Dimensions
| Product Net Weight | 0.175 kg |
| Product Net Depth / Length | 46.7 mm |
| Product Net Height | 57.5 mm |
| Product Net Width | 52.5 mm |
Technical
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Frequency (f) | Control Circuit DC |
| Rated Frequency (f) | Main Circuit 60 Hz |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Rated Frequency (f) | Main Circuit DC |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 64 A |
Why Proax for ABB BC6-30-10-01?
Proax is an authorized distributor of ABB BC6-30-10-01 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | BC6301001 |
| Pack Size | 1 |
