Official DistributorSKU
MPN
OCS CORNER SET
Weight
0.041 kg

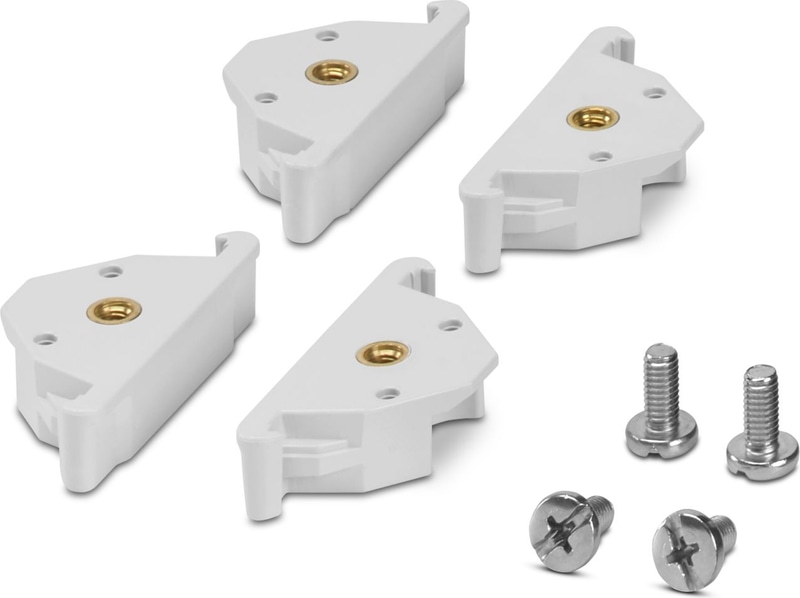

OCS CORNER SET - Corner attachment
Corner mount, set of 4 pieces incl. screws for all housing sizes, material: PC-ABS, color: light gray
- Internationally certified housing system
- Special plastic ensures safe continuous operation
- Provides protection against the ingress of jet water
- Withstands even heavy mechanical strain
Technical Specifications
Notes
| Recommendation | Further information and detailed dimensions are available in the download area. |
| Assembly instruction: | Only use the screws supplied for mounting. |
Product properties
| Housing type | Outdoor housing |
| Housing series | OCS |
Dimensions
| Width | 25 mm |
| Height | 51 mm |
| Depth | 11 mm |
Material specifications
| Color | light grey (RAL 7035) |
| Material () | Polycarbonate |
| Flammability rating according to UL 94 | V2 |
| Insulating material | PC |
| Surface characteristics | untreated |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
Mounting
| Mounting Type | Screw mounting |
Packaging specifications
| Type of packaging | PE bag |
