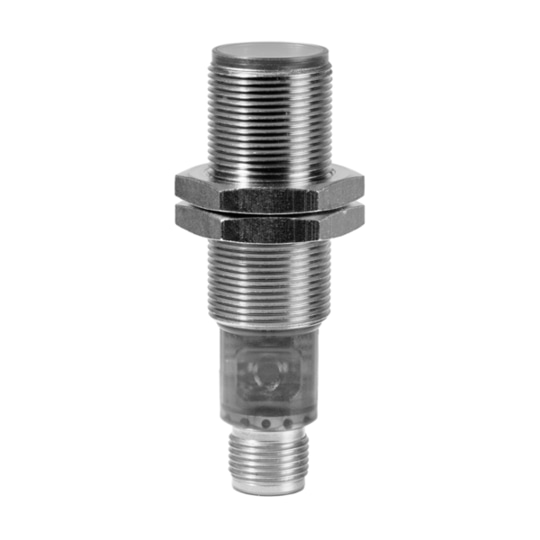

Diffuse sensors with background suppression
- background suppression
- 45 … 200 mm
- pulsed PinPoint LED
- PNP complementary
- qTeach
- connector M12 4 pin
- -25 … 60 °C
- IP 67
Documents
Technical Specifications
General data
| Type | Background suppression |
| Sensing distance Tw | 45 … 200 mm |
| Sensing range Tb | 20 … 200 mm |
| Power on indication | LED green |
| Light indicator | LED yellow |
| Sensing distance adjustment | qTeach |
| Suppression of reciprocal influence | Yes |
Light Source
| Light Source | Pulsed PinPoint LED |
| Wave length | 630 nm |
Electrical data
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 45 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP complementary |
| Output Current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
Mechanical data
| Width / diameter | 18 mm |
| Height / length | 65 mm |
| Design | Cylindrical threaded |
| Housing Material | Brass nickel plated |
| Front (optics) | PA |
| Connection types | Connector M12 4 pin |
Ambient conditions
| Protection class | IP 67 |
| Operating Temperature | -25 … +60 °C |
