Stop Worrying About Tool Drops.
Compatible with Leading Industrial Robots
Built for Your Operation
Growing Operations
50-200 employees
- Simple integration with any robot brand
- One tool changer system as you scale
Multi-Robot Facilities
3-20 robots
- Seven sizes, one vendor
- Reduce spare parts inventory
High-Volume Production
Enterprise
- 5 million maintenance-free cycles
- Mechanical fail-safe for uninterrupted operation
Industries Using the WPR5000
Automotive Manufacturing
Assembly, welding
Aerospace
Machining, precision assembly
Electronics Manufacturing
Pick-and-place, assembly
Plastics & Injection Molding
Molding, secondary operations
Is Your Current Tool Changer Costing You $2,000+ Per Day?
| Feature | Old Tool Changers | WPR5000 Series |
|---|---|---|
| Adapter Plates | Required, adds bulk | ISO Direct mount, no plates needed |
| Tool Change Time | 7-10 minute changeovers | 3-second changes |
| Power Failure Safety | Tools drop during power loss | Spring-loaded safety lock |
| Workspace Efficiency | Bulky design limits workspace | 60% smaller footprint |
| Maintenance Requirements | Constant maintenance required | Hardened steel durability |
| Payload Capacity | Limited payload capacity | 500kg+ capacity |

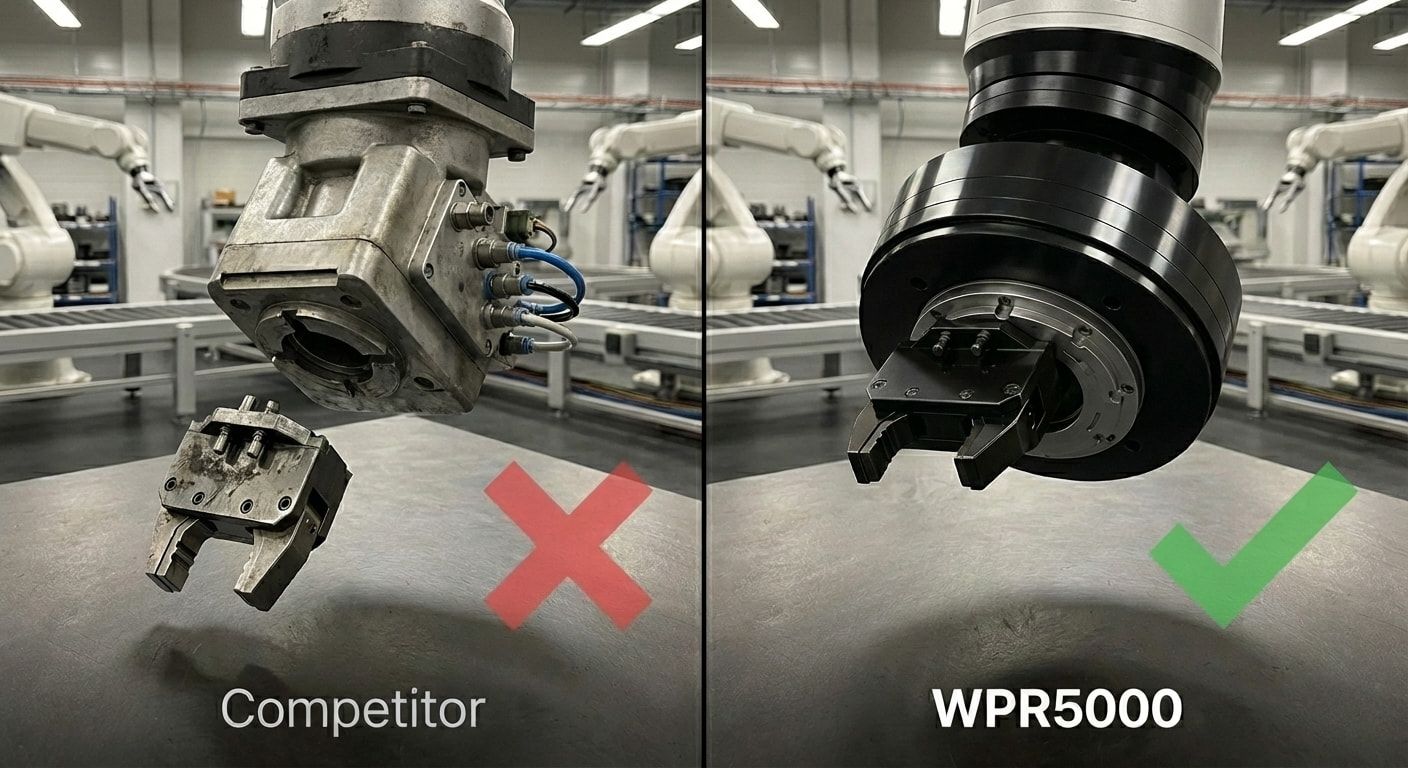

Air Fails. Tool Holds.
Most tool changers need constant air pressure to stay locked. If pressure drops, your tool drops.
The WPR5000 uses spring loaded cams that lock mechanically. Air is only needed to release, so your tool stays secure at all times.

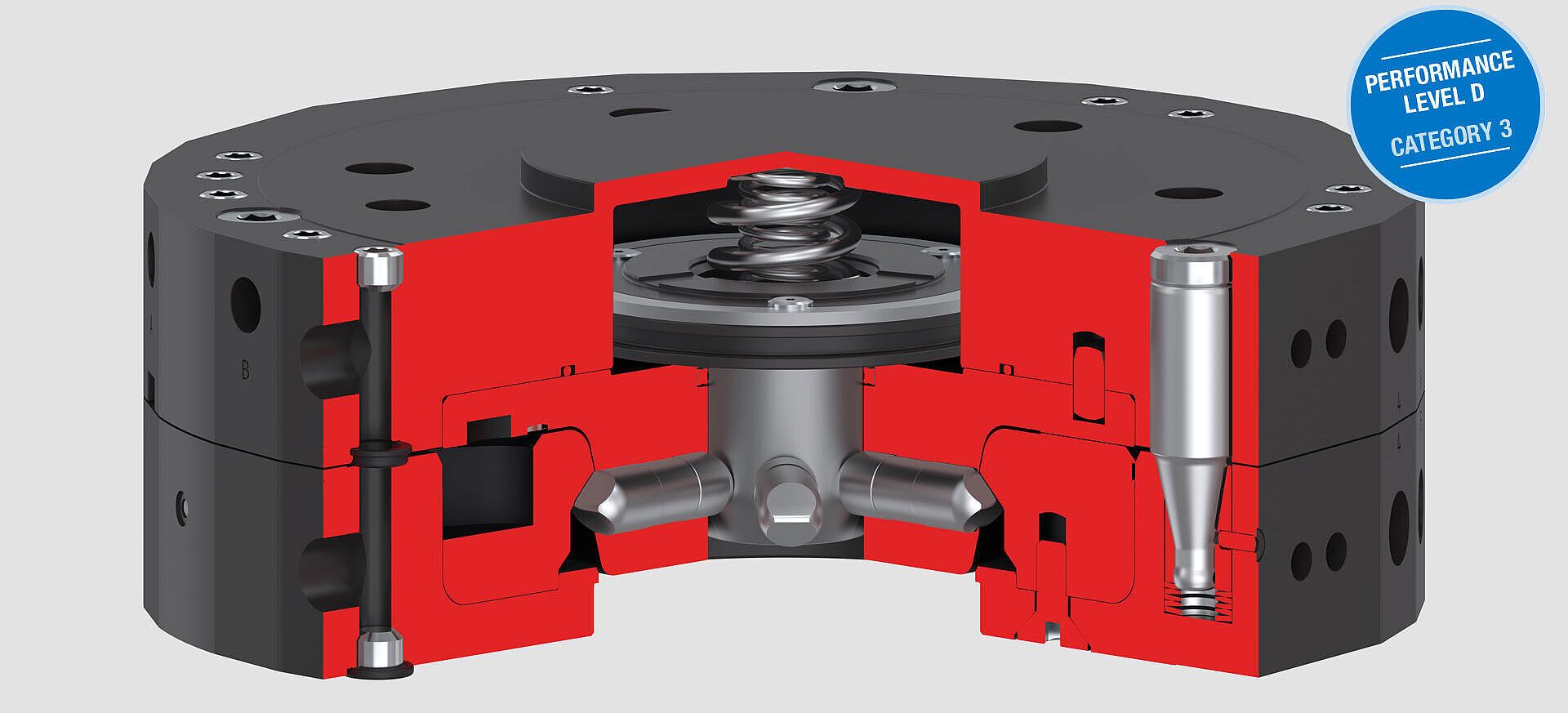

THE TECHNICAL FEATURES IN DETAIL
Performance Level D, Category 3 Safety
The WPR5000 series tool changers are extremely safe due to their spring-loaded locking mechanism, which holds the loose part securely to the stationary part even in the event of a pressure drop or an emergency stop.
Spring-Loaded Fail-Safe Locking
Completely redeveloped locking kinematics result in maximum safety combined with absolute precision. All parts of the locking mechanism are made of hardened corrosion-resistant steel, both in the stationary and in the loose part.
Integrated Pneumatic Pass-Through
A tubeless connection is possible thanks to the integrated axial and radial pneumatic feed-throughs.
Precision Locking Bolts
Locking parts made of hardened steel and locking bolts between the stationary and loose parts, which provide a high tightening stroke at maximum forces and torques, are setting a new standard for tool changers.
Energy Storage Elements
A nearly endless variety of optional energy elements for the transmission of pneumatics, electrical signals and load, communication and hydraulics. The right energy elements for any imaginable transmission scenario.
Conical Pin Pre-Centering
Pre-centering using conical centering pins on the stationary part ensures smooth changing between the stationary and loose parts while providing extremely high torsional rigidity.
Seven Sizes. One System. TK 31.5 to TK 160.
Cover your entire operation without mixing vendors or compatibility headaches.
| Product | Installation Size | Flange Size (EN ISO 9409-1) | Pneumatic Ports | Side Type (Pairing) | Payload (kg) |
|---|---|---|---|---|---|
| WPR5040F-00-A | WPR5040 | TK 40 | 4 | Fixed Side (F) | 25 |
| WPR5040L-00-A | WPR5040 | TK 40 | 4 | Tool Side (L) | 25 |
| WPR5050F-00-A | WPR5050 | TK 50 | 4 | Fixed Side (F) | 35 |
| WPR5050L-00-A | WPR5050 | TK 50 | 4 | Tool Side (L) | 35 |
| WPR5063F-00-A | WPR5063 | TK 63 | 6 | Fixed Side (F) | 60 |
| WPR5063L-00-A | WPR5063 | TK 63 | 6 | Tool Side (L) | 60 |
| WPR5080F-00-A | WPR5080 | TK 80 | 6 | Fixed Side (F) | 80 |
| WPR5080L-00-A | WPR5080 | TK 80 | 6 | Tool Side (L) | 80 |
| WPR5100F-00-A | WPR5100 | TK 100 | 8 | Fixed Side (F) | 150 |
| WPR5100L-00-A | WPR5100 | TK 100 | 8 | Tool Side (L) | 150 |
| WPR5125F-00-A | WPR5125 | TK 125 | 10 | Fixed Side (F) | 270 |
| WPR5125L-00-A | WPR5125 | TK 125 | 10 | Tool Side (L) | 270 |
| WPR5160F-00-A | WPR5160 | TK 160 | 10 | Fixed Side (F) | 325 |
| WPR5160L-00-A | WPR5160 | TK 160 | 10 | Tool Side (L) | 325 |
Technical Notes
- Type of Drive: Pneumatic
- Electrical Ports: Optional on all models
- Payload Ratings: All payloads are rated at 10 m/s² acceleration and within the rated C.G. offset
- Pairing Rule: Each F (Fixed Side) model pairs with the corresponding L (Tool Side) model (e.g., WPR5040F ↔ WPR5040L)
Key Features
Trusted by Manufacturing Teams
"Tool change reliability is no longer a concern in our robotic cells."
"Rock-solid locking and repeatability, exactly what our machining operations needed."
"Faster changeovers without sacrificing safety."
Why Proax
We don't just sell tool changers. We support them. Our in-house engineers provide free technical consultation from selection to integration. Local stock, fast shipping, real expertise.
Request a Quote
Get personalized pricing for your WPR5000 tool changer requirements. Our team will respond within 24 hours.
