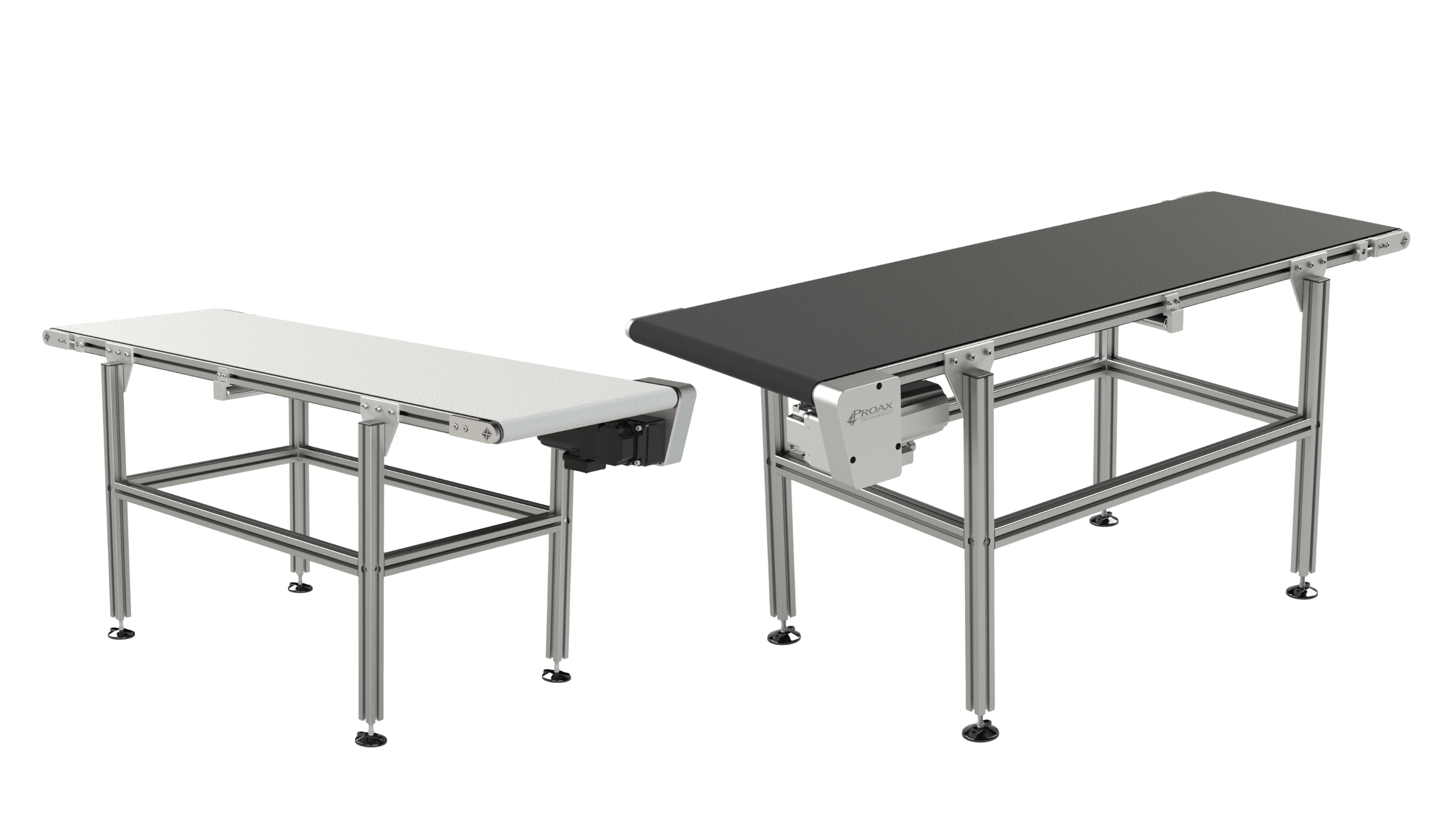

C45 Series Flat Belt Conveyor
Delivering Reliable, Custom-Fit Flat Belt Conveyors Built for Industrial Performance
Engineered for Efficiency
At Proax, our flat belt conveyor systems are designed for installation flexibility and optimal performance. Whether your application demands high speeds, side-load tracking, or space-saving configurations, our C45 Series delivers reliable, custom solutions for your facility.
Key Features
Ideal for light and medium-duty operations
Handles up to 225 kg (496 lbs)
Reaches up to 98 m/min (320 ft/min)
Width: 90 to 610 mm (3.5"–24")
Length: up to 6000 mm (236")

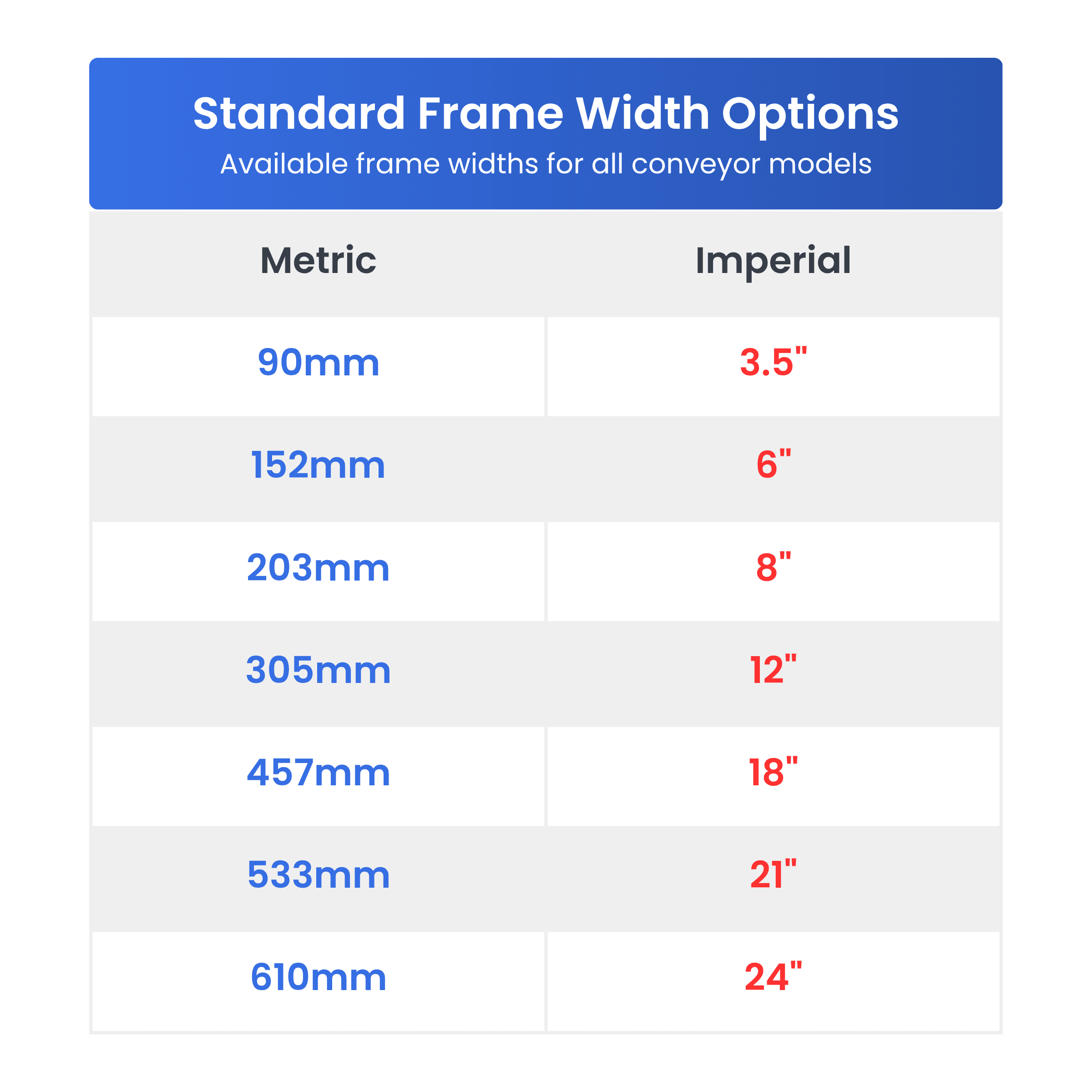

Frame Width Options
Versatile sizing options ensure the perfect fit for your application. Seven standard frame widths accommodate everything from compact workstations to large-scale production lines.
Drive Options

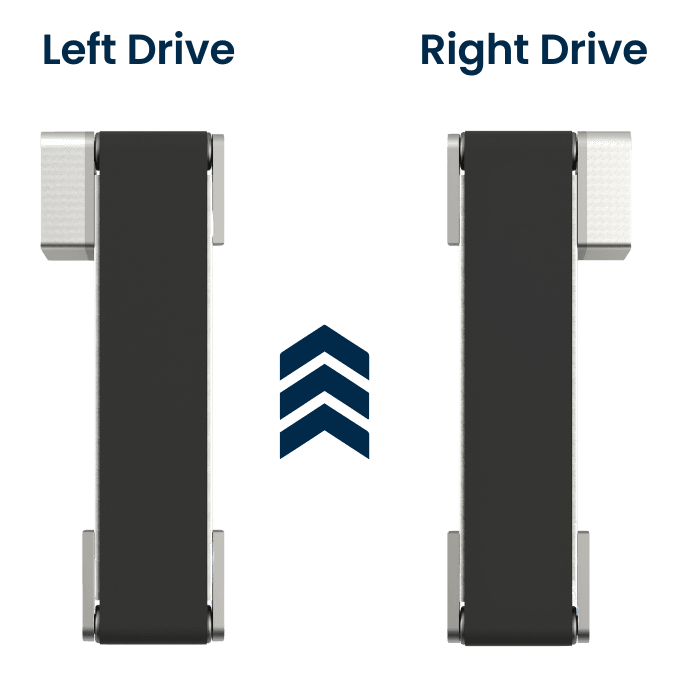

- Left or Right Drive for installation flexibility
- Gear Motor could be mounted parallel or 90 degrees
- Typical drive direction will be pulling the product

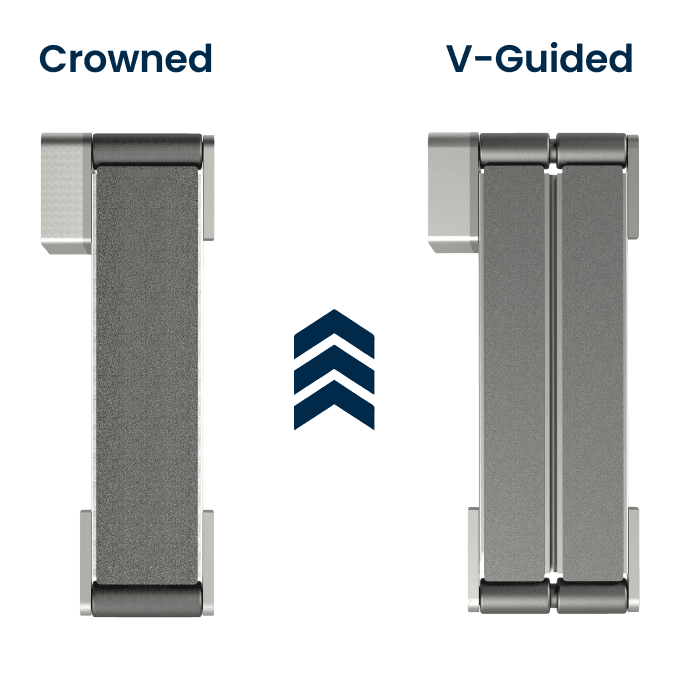

Belt Tracking Options
- Crowned roller on all sizes
- V-Guided roller option from 203mm (8") for side load
- Easier to adjust when need it
- Could run faster without tracking issue
Belt Options

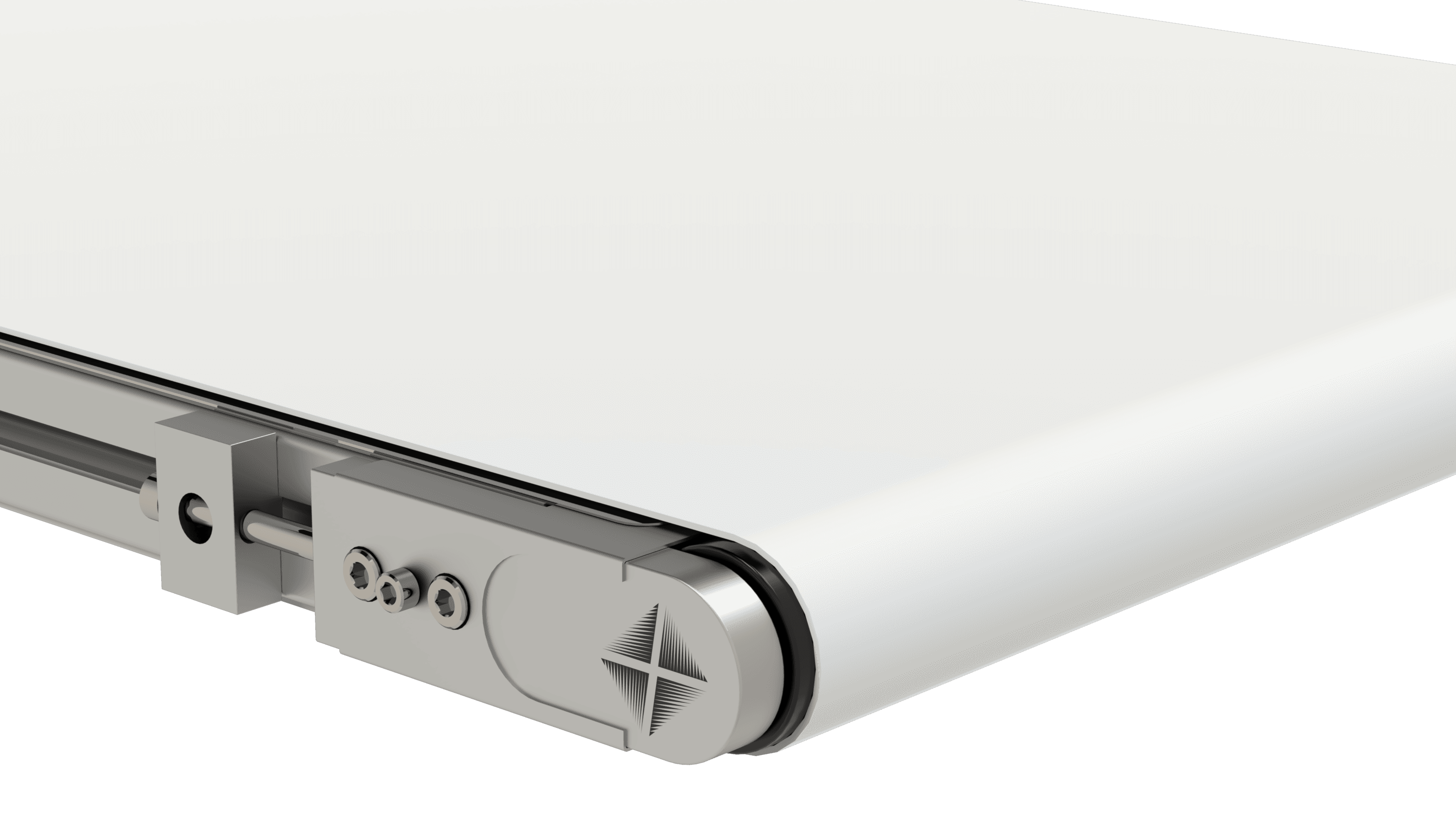

Cost-effective general purpose belt material ideal for light to medium duty applications and easy to clean.

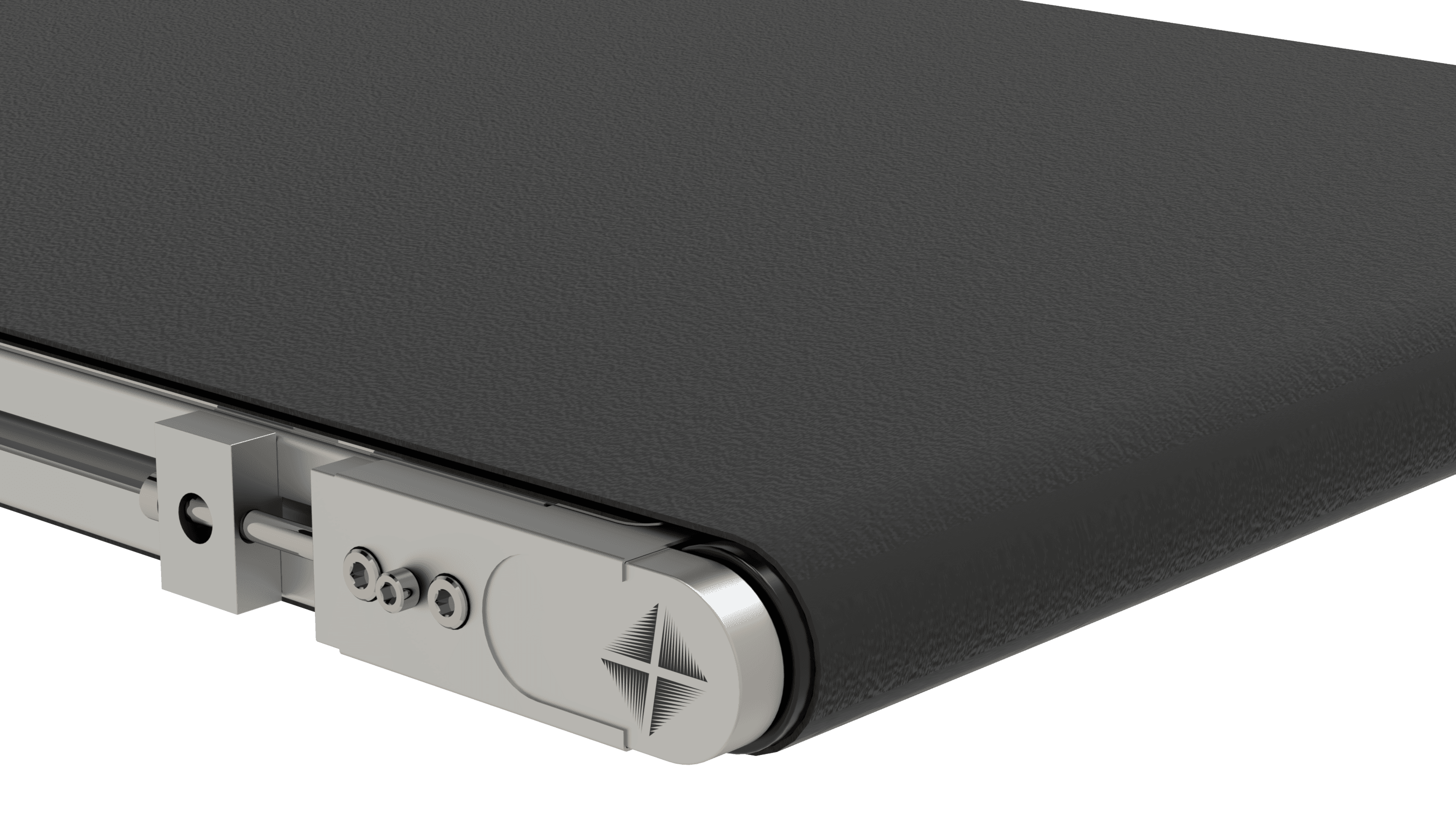

High durability belt with excellent wear resistance and chemical resistance, suitable for heavy-duty industrial use.
Motor Options
Supports various voltages
Up to 400W gear motors (5:1 to 30:1 ratio)
Optional AC drive
Support Options

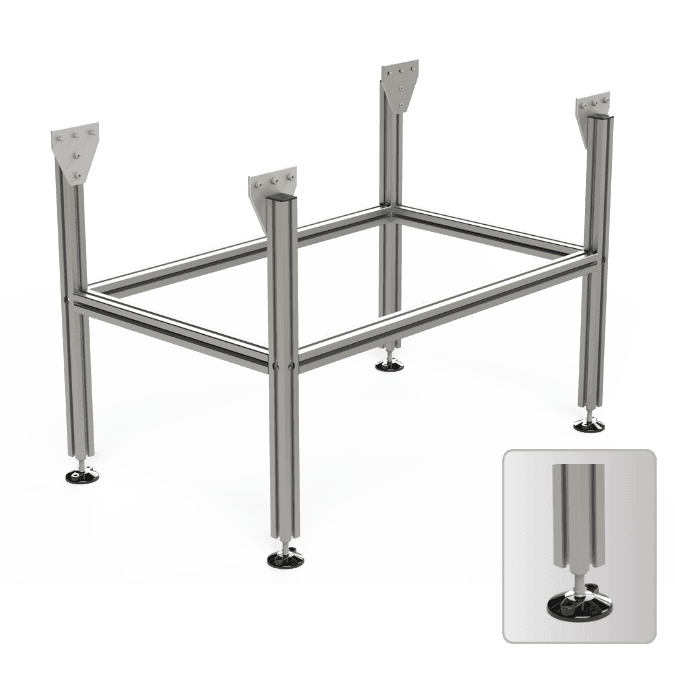

Levelling feet with various heights available.
Casters available with multiple profile options, fixed and swivel wheels, plus optional lock wheels.

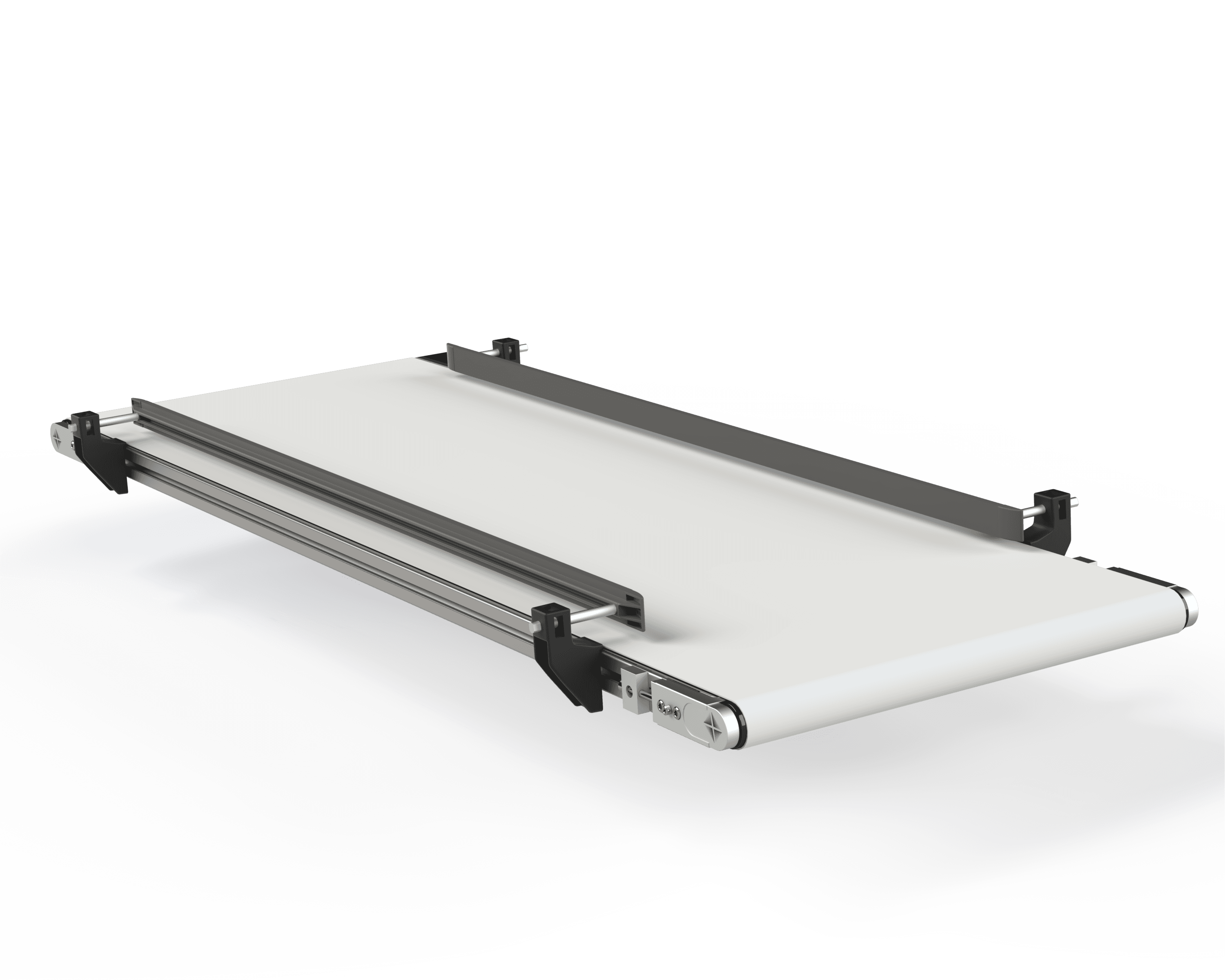

Available with both fixed and adjustable guide options.
