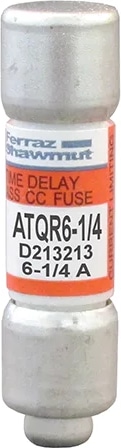

ATQR6-1/4
Official DistributorBy Mersen
SKU
MERATQR614
Weight
0.008 kg
Series ATQR - Class CC - Time-Delay
Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 6.25A Ferrule Amp-Trap 2000®
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Documents
ATQR - Class CC - Time-Delay
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- Time-delay for control transformer inrush loads without nuisance opening
- Highly current-limiting for low peak let-thru current
- Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
- High visibility orange label ensures instant brand recognition, and simplifies replacement
- Metal-embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High-grade silica filler ensures fast arc quenching and high current limitation
Applications
- Control transformers
- Solenoids
- Inductive loads
- Lighting, heating & general-purpose loads
Technical Specifications
| Frequency | 50/60 Hz |
| Ampere Rating | 6.25 A |
| Fuse Class | Class CC |
| Body Insulating Material | GMG |
| Product Length | 38.1 mm |
| Speed Characteristic | Time Delay |
| Mounting | Clip |
| ac max ir breaking capacity | 200 kA |
| Connection Terminal Material | Tin-Plated Copper |
| Connection Terminal Type | Ferrule |
| Product Diameter | 10.4 mm |
| data/description | Fuse ATQR - Class CC - Time-Delay 600VAC / 300VDC / 6.25A Ferrule Amp-Trap 2000® |
| rated voltage ac | 600 V |
| rated voltage dc | 300 V |
Why Proax for Mersen ATQR6-1/4?
Proax is the authorized distributor of Mersen ATQR6-1/4. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | ATQR614 |
| Pack Size | 10 |
