AJT450EI
Official DistributorBy Mersen
SKU
MERAJT450EI
Weight
1.374 kg

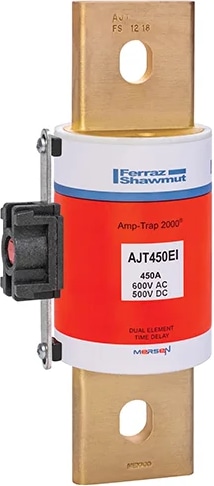

Fuse AJT - Class J - Time-delay 600VAC 500VDC 450A Blade EI Indicator Amp‑Trap 2000®
Technical Specifications
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 500 V |
| Frequency | 50/60 Hz |
| Ampere Rating | 450 A |
| Fuse Class | Class J |
| Indication System | Yes (EI Indicator) |
| Body Insulating Material | GMG |
| Product Length | 203.2 mm |
| Speed Characteristic | Time Delay |
| Mounting | Clip or Bolted |
| ac max ir breaking capacity | 200 kA |
| Connection Terminal Material | Brass |
| Connection Terminal Type | Blade |
| Product Diameter | 63.5 mm |
Why Proax for Mersen AJT450EI?
Proax is the authorized distributor of Mersen AJT450EI. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
