ACK
Mersen forklift truck and battery isolator fuses are specially designed for the heavy duty loads associated with DC battery powered equipment such as forklift trucks, hand trucks, motorized work platforms, and other DC battery operated systems. Rugged construction and stud mounted bolt-in design assure a long life in adverse conditions for these fuses. This expanded line of forklift truck fuses can fulfill virtually all of your heavy duty circuit protection needs up to 125V AC or DC.
Features
- All fuses are AC and DC rated
- Expanded ampere ratings
- Time-delay and general purpose types
Applications
- Forklift trucks
- Battery hand trucks
- Motorized work platforms
- Battery systems
| Ampere Rating | 50 A |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 125 V |
| Rated Voltage Dc Ul | 125 V |
| Product Diameter | 21.8 mm |
| Product Length | 95 mm |
| Product Weight | 0.0454 kg |
| Indication System | 0 |
| Speed Characteristic | Time Delay |
| Mounting | Bolted |
| Connection Terminal Type | Blade |
| Connection Terminal Material | Copper |
| Body Insulating Material | PolyTube |

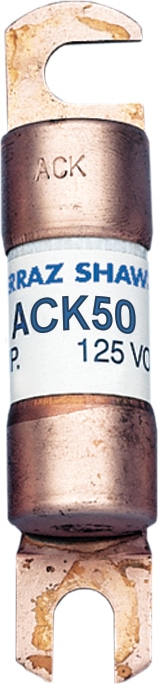

Why Proax for Mersen ACK50?
Proax is the authorized distributor of Mersen ACK50. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 10 |
