Series Amp-Trap® A60Q 600VAC 600VDC

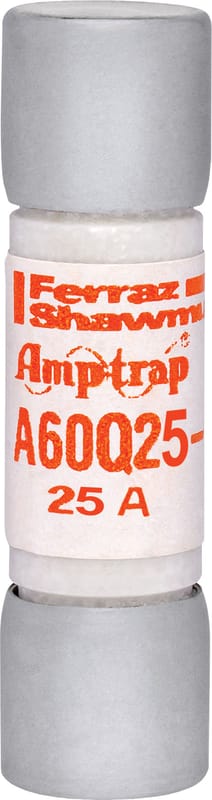

High Speed Fuse Amp-Trap® A60Q 600VAC 600VDC 25A Ferrule
Documents
Amp-Trap® A60Q 600VAC 600VDC
A60Q Amp-Trap® Form 101 high speed fuses feature the only 600V AC / DC rating in the industry of similar size (1-1/2" x 13/32") fuses protecting semiconductors. A60Q also has the lowest l2t of all similar fuses and excellent cycling ability. Applications include inverters and small equipment requiring extremely fast response to faults, without the need to carry sustained heavy overloads.
Features
- Lowest I2t of any fuse this size for greater protection
- Excellent cycling ability gives advantage in equipment design
- 600V AC / DC rated
Applications
- Protection of small inverters and drives, and equipment requiring the highest degree of protection
Technical Specifications
| Ampere Rating | 25 A |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 600 V |
| Product Diameter | 10.3 mm |
| Product Length | 38.1 mm |
| Product Weight | 0.0091 kg |
| Indication System | 0 |
| Speed Characteristic | High Speed |
| Mounting | Clip |
| Connection Terminal Type | Ferrule |
| Connection Terminal Material | Tin-Plated Copper |
| Body Insulating Material | GMG |
Why Proax for Mersen A60Q25-2?
Proax is the authorized distributor of Mersen A60Q25-2. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | A60Q252 |
| Pack Size | 100 |
