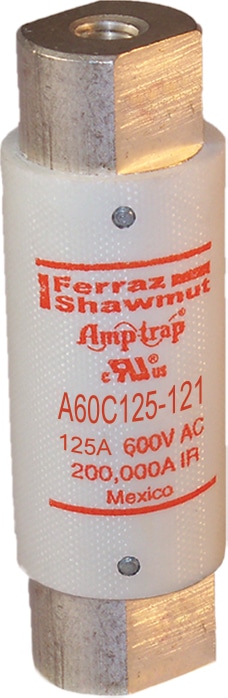

A60C
Mersen low-voltage capacitor fuses provide advanced safety for power correction and harmonic filtering equipment. A capacitor fuse isolates a shorted capacitor before it can damage surrounding equipment or personnel. Typical capacitor failures occur when the internal dielectric can no longer withstand the applied voltage, resulting in a low impedance current path and generating excessive heat and pressure that can cause violent case rupture. Mersen A60C fuses will isolate the shorted capacitor before case rupture occurs while routinely withstanding inrush current at startup.
Features
- High interrupting rating
- Current-limiting
- Capacitor inrush withstand capability
- Direct mount
- Optional blown fuse indication
Applications
- Advanced safety for power correction and harmonic filtering equipment
| Ampere Rating | 125 A |
| Ac - Dc - Ac Dc | AC |
| Rated Voltage Ac Ul | 600 V |
| Product Diameter | 31 mm |
| Product Length | 97 mm |
| Product Weight | 0.2722 kg |
| Indication System | 0 |
| Mounting | Direct Mount |
| Connection Terminal Type | Screw-in |
| Connection Terminal Material | Silver-Plated Brass |
| Body Insulating Material | GMG |
Why Proax for Mersen A60C125-121?
Proax is the authorized distributor of Mersen A60C125-121. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Alternate Names | A60C125121 |
| Pack Size | 1 |
