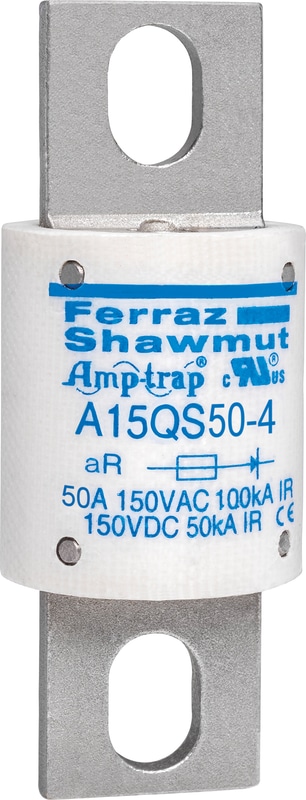

A15QS50-4
Official DistributorBy Mersen
SKU
MERA15QS504
High Speed Fuse Amp-Trap® A15QS 150VAC 150VDC 50A Blade
Amp-Trap® A15QS 150VAC 150VDC
A15QS Amp-Trap® Form 101 high speed fuses were designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. The A15QS product line’s compact design is perfect for those applications that have limitations on available space.
Features
- Low I²t minimizes damage to protected components on short circuit *Controlled arc voltage reduces stress to circuit components during fuse clearing
- Choice of mounting types provides options for unique termination requirements
Applications
- Protection of heavy duty devices such as electrochemical rectifiers
Technical Specifications
| Ampere Rating | 50 A |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 150 V |
| Rated Voltage Dc Ul | 150 V |
| Product Diameter | 28.7 mm |
| Product Length | 67.6 mm |
| Product Weight | 0.0771 kg |
| Indication System | 0 |
| Speed Characteristic | High Speed |
| Mounting | Bolted |
| Connection Terminal Type | Blade |
| Connection Terminal Material | Tin-Plated Brass |
| Body Insulating Material | GMG |
Why Proax for Mersen A15QS50-4?
Proax is the authorized distributor of Mersen A15QS50-4. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | A15QS504 |
| Pack Size | 1 |
