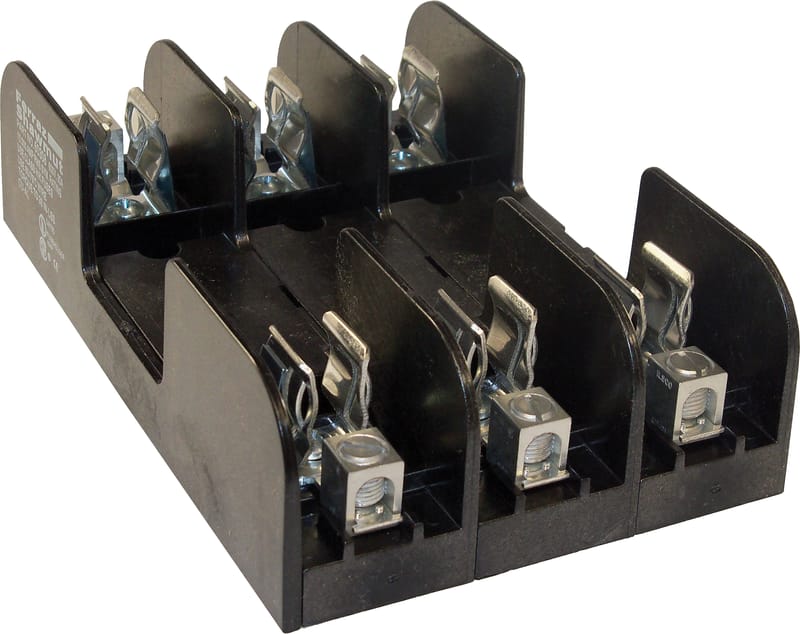

60308
Official DistributorBy Mersen
Documents
Class H/K 600V Fuseholders - Class H, K
Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced.
Applications
- 600V Fuseholders for UL Class H and K fuses
| Ampere Rating | 30 A |
| Sell Pack Length | 257 mm |
| Sell Pack Width | 179.3 mm |
| Sell Pack Quantity | 5 EA |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 600 V |
| Product Height | 50.8 mm |
| Product Length | 177.8 mm |
| Product Width | 115.6 mm |
| Product Weight | 0.3461 kg |
| Fuse Type Class | Class H/K |
| Indication System | 0 |
| Max Fuse Rating | 30 A |
| Installation Mounting | Direct Screw Mount |
| Body Insulating Material | Glass Filled Polycarbonate |
| Number of Poles | 3-pole |
| Wire Connections | Box with Reinforced Clip |
| Short Circuit Current Rating Sccr | 50 kA |
