6SJ - Class J

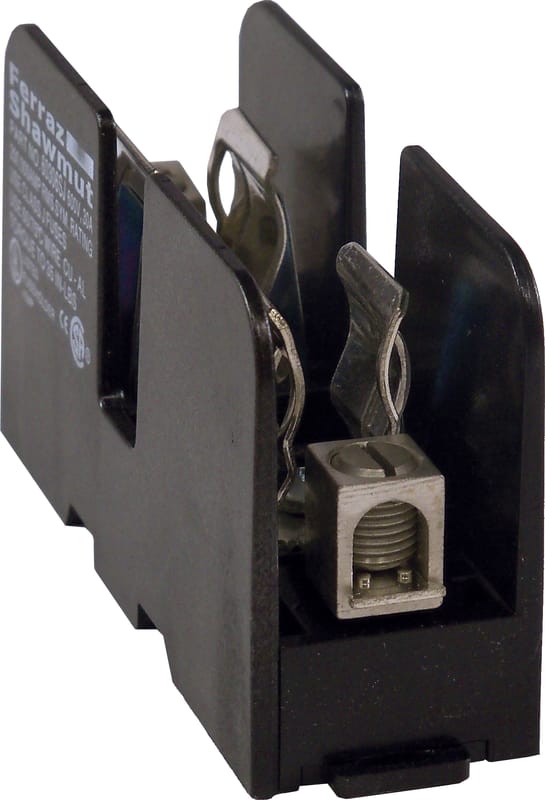

Mersen open style class J fuse blocks accommodate all class J fuses ranging from 0-600A, 600V. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. SJ fuse blocks are more compact than the traditional offering and feature a unique adder block configuration for multi-pole field assembly. All fuse clips are made of high conductivity tin-plated copper, with a choice of spring reinforced or non-spring reinforced clips.
Applications
- Recommended fuse usage
- Class J Blocks (600V) use with AJT, A4J, HSJ
- Ratings
- Volts: 600VAC/DC
- Amps: 30A, 60A, 100A; 200A, 400A, 600A
- SCCR: 200kA
| Ampere Rating | 30 A |
| Sell Pack Length | 177.8 mm |
| Sell Pack Width | 165.1 mm |
| Sell Pack Quantity | 10 EA |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 600 V |
| Product Height | 55.9 mm |
| Product Length | 99.1 mm |
| Product Width | 32.8 mm |
| Product Weight | 0.1225 kg |
| Fuse Type Class | Class J |
| Indication System | 0 |
| Max Fuse Rating | 30 A |
| Installation Mounting | Screw Mount or DIN Rail |
| Body Insulating Material | Glass Filled Polycarbonate |
| Number of Poles | 1-pole |
| Wire Connections | Box with Reinforced Clip |
| Short Circuit Current Rating Sccr | 200 kA |
