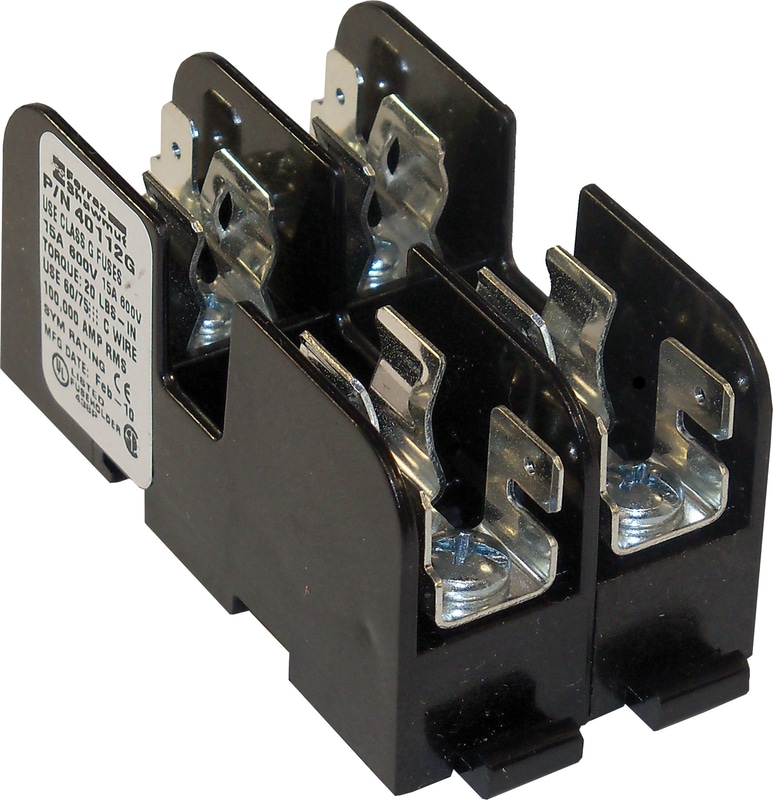

40112G
Official DistributorBy Mersen
Class G Fuseholders - Class G
Mersen Class G fuse blocks accommodate all 15, 20, 30 and 60 ampere Class G fuses. A choice of box, screw or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
Features
- Unique integral DIN-rail adapters for 15, 20 & 30A blocks
- Unique adder-block design (all ampere ratings) for design flexibility
- Spring reinforcing standard for 60A clips
- Features high conductivity copper alloy fuse clips
Applications
- 600V Fuseholders for UL Class G fuses
| Ampere Rating | 15 A |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 600 V |
| Product Height | 36.8 mm |
| Product Length | 77.5 mm |
| Product Width | 41.1 mm |
| Product Weight | 0.1134 kg |
| Fuse Class | Class G |
| Indication System | 0 |
| Max Fuse Rating | 15 A |
| Installation Mounting | Screw Mount or DIN Rail |
| Body Insulating Material | Glass Filled Polycarbonate |
| Number of Poles | 2-Pole |
| Wire Connections | Screw with Reinforced Clip |
| Wiring Range | Cu #10-14 |
| Short Circuit Current Rating Sccr | 100 kA |
