Official DistributorBy SMC
SKU
Weight
0.47 kg

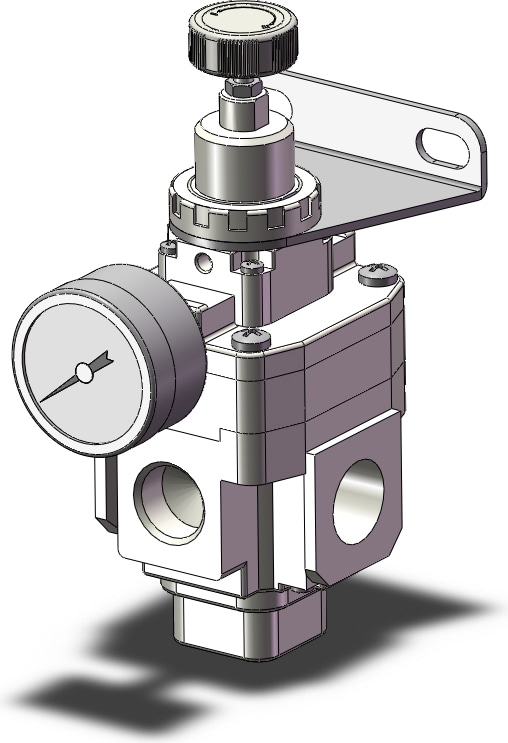

Precise regulator: 1.5-58 psi, bottom exhaust, NPT threads, 1/2"" port, includes bracket and psi gauge.
Technical Specifications
| Body Size | 3 |
| Set Pressure | 1 (1.5 to 58 psi [0.01 to 0.4 MPa]) |
| Exhaust Direction | 0 (Bottom Exhaust) |
| Thread | N (NPT) |
| Port Size | 04 (1/2) |
| Option | BG (w/Bracket + Round Type Pressure Gauge) |
| Semi-Standard | Z (Name Plate & Pressure Gauge in Imperial Units: psi) |
SMC eTechin IR
Why Proax for SMC IR3010-N04BG-Z-A?
Proax is the Elite distributor of SMC IR3010-N04BG-Z-A and one of SMC's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | IR3010N04BGZA |
| Pack Size | 1 |
