Official DistributorBy SMC
SKU
Weight
4.5 kg

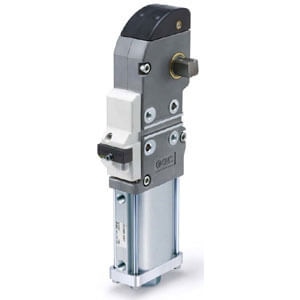

63mm bore clamp cylinder with 90° arm rotation, NPT ports, Turck proximity switch, and rubber top cover.
Documents
Configure Product
Technical Specifications
| Series | CKZ3N |
| Bore Size | 63mm |
| Cylinder Port | NPT |
| Arm Opening Angle | 90 (90°) |
| Arm Position | D (Both Sides) |
| Proximity Switch | T (Turck) |
| Metal Switch Cassette Cover | None |
| Front Mounting | F (Yes) |
| Top Cover | Rubber Cover |
| Option | X2742A (Base Type) |
| Handle Mounting Position | None |
Why Proax for SMC CKZ3N63-90DTF-X2742A?
Proax is the Elite distributor of SMC CKZ3N63-90DTF-X2742A and one of SMC's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | CKZ3N6390DTFX2742A |
| Pack Size | 1 |
