MKey9M 24VDC
Official DistributorBy ABB
SKU
ABB2TLA050009R0112
MPN
2TLA050009R0112

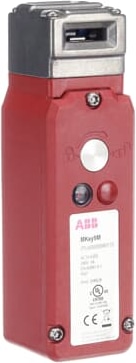

Safety interlock switch, rugged polyester housing and stainless steel head, 1xM20 Conduit entry, +24 VDC power to lock. Delivered with standard key.
MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard. All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the locking signal they can be used either as process locks or safety locks (with a safe unlocking function). MKey switches are available in different material and sizes in order to meet the requirements of different applications.
Technical Specifications
Dimensions
| Product Net Depth / Length | 46 mm |
| Product Net Height | 160 mm |
| Product Net Width | 46 mm |
| Product Net Weight | 0.603 kg |
Safety Information
| Performance level (PL) | Up to e |
| Safety Integrity Level (SIL) | 1 |
| Safety Integrity Level (SIL) | 2 |
| Safety Integrity Level (SIL) | 3 |
| B10d Value | Operations at 100 mA Load 2.5 million |
Technical
| Number of Contacts NC | 1 |
| Number of Contacts NO | 3 |
| Rated Control Supply Voltage (Us) | 24 V DC |
Why Proax for ABB MKey9M 24VDC?
Proax is an authorized distributor of ABB MKey9M 24VDC and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | MKey9M24VDC |
| Pack Size | 1 |
