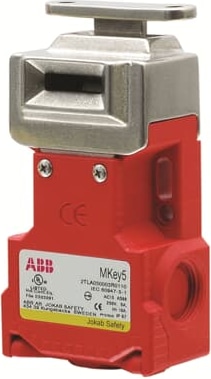

MKey5 SSH
Official DistributorBy ABB
SKU
ABB2TLA050003R0110
MPN
2TLA050003R0110
Safety interlock switch, plastic body and stainless steel head, 12N holding force. 2NO+1NC guard open. 3xM20 conduits entries. Delivered with standard key.
MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard. All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the locking signal they can be used either as process locks or safety locks (with a safe unlocking function). MKey switches are available in different material and sizes in order to meet the requirements of different applications.
Technical Specifications
Dimensions
| Product Net Depth / Length | 34 mm |
| Product Net Height | 98 mm |
| Product Net Width | 58 mm |
| Product Net Weight | 0.321 kg |
Safety Information
| Performance level (PL) | Up to e |
| Safety Integrity Level (SIL) | 1 |
| Safety Integrity Level (SIL) | 2 |
| Safety Integrity Level (SIL) | 3 |
| B10d Value | Operations at 100 mA Load 2.5 million |
Technical
| Number of Contacts NC | 2 |
| Number of Contacts NO | 1 |
Why Proax for ABB MKey5 SSH?
Proax is an authorized distributor of ABB MKey5 SSH and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | MKey5SSH |
| Pack Size | 1 |
