Official DistributorBy Omron
SKU

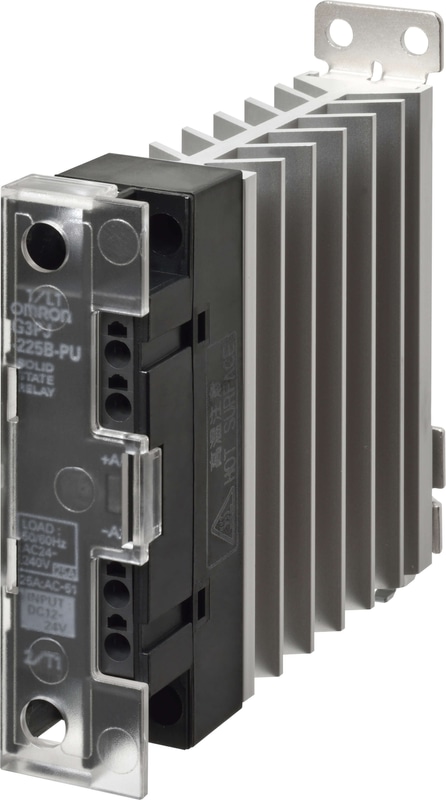

Solid-state relay, 1 phase, 27A, 24-240 VAC, with heat sink, DIN rail mount, input voltage 12-24V DC with Push-in terminals
Documents
G3PJ Solid State Relays for Heaters
Solid state relays for heaters
Single-phase SSR for low heat generation enables carrying 25 A (G3PJ-\_25B(-PU)) even for close mounting of three SSRs to contribute to downsizing of control panels. Models available with push-in plus input terminals.
- SCCR of 10 kA (UL 508)
- Surge pass protection improves surge dielectric strength for output currents
- Both push-in plus and screw terminal input terminals available
- Mount to DIN Track or with screws
- RoHS compliant
Technical Specifications
| Input voltage range | 4 VDC - 30 VDC |
| Max Operating Input Voltage | 26.4 - 32 VDC |
| Input Impedance Range | 4.5 mA max. - 10 mA max. |
| Max Rated Load Voltage | 120 - 240 VAC |
| Max Applicable Load Voltage | 132 - 264 VAC |
| Max Load Current | AC: 17.4 A - AC: 35 A |
| Inrush Current | 220 A (60 Hz, 1 cycle) |
| Zero Cross | Yes |
| Operation Indicator | Yes |
Why Proax for Omron G3PJ-225B-PU DC12-24?
Proax is an authorized distributor of Omron G3PJ-225B-PU DC12-24. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | G3PJ225BPUDC1224 |
| Pack Size | 1 |
