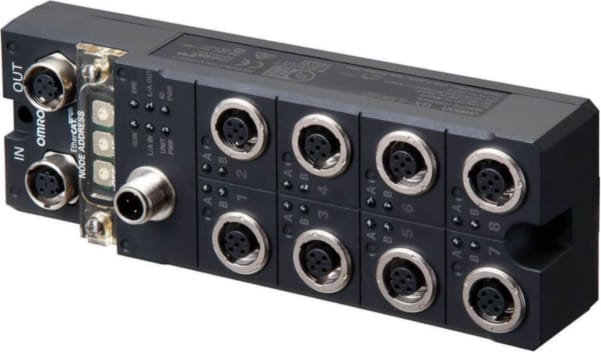

GX-ILM08C
Official DistributorBy Omron
GX Series IO-Link Master Unit
Connect upto 8 IO-Link sensors with this IP67 rated IO-Link Master unit for water and dusty environments.
- The host controller can cyclically read control signals, status, wiring, and power supply status of IO-Link sensors.
- User-specified data in IO-Link devices can be read and written from the host controller when necessary.
- Digital signals can be input rapidly from IO-Link sensors*1 during IO-Link communications.
- IO-Link sensors can be combined with non-IO-Link sensors.
- Incorrect connections of IO-Link sensors can be checked when IO-Link communications start.
- Backup and restoration of IO-Link device parameters*2 make replacement of IO-Link sensors easier.
- Sensors can report their errors to the master, which facilitates locating errors from the host.
- The total number of retries in cyclic communications can be recorded to check the quality of IO-Link communications. (When EtherCAT is used as the host communication interface) *2
*1 IO-Link sensors that support digital inputs with pin 2.
*2 When the Omron IO-Link master united is used
Omron's initial offering of IO-Link products includes photoelectric sensors, color mark sensors, proximity sensors and IO-Link masters. By connecting sensors and controllers via IO-Link, all necessary information for satble sensor operations, such as incident light levels, are visible. Now, monitoring and error detection at the sensor level is possible; reducing downtime, aiding in predictive maintenance and decreasing commissioning time.
| Type | Input/Output Link Unit |
| Mounting Type | Panel Mount |
| Terminal Type | M12 Connector |
| Output Type | Direct Current (DC) Positive-Negative-Positive (PNP) |
| Input Type | Positive-Negative-Positive (PNP) |
| Number of Inputs | 8 |
| Number of Inputs Per Common | 8 |
| Number of Outputs Per Common | 8 |
| IP Rating | IP67 Rated |
| Number of Outputs | Configurable up to 8 |
| DC Output Voltage | 24 V |
| Output Current Per Point | 0.3 A |
| Output Current Per Common | 2.4 A |
| Input Current | 5 mA |
| DC Input Voltage | 24 V |
Why Proax for Omron GX-ILM08C?
Proax is an authorized distributor of Omron GX-ILM08C. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Alternate Names | GXILM08C |
| Pack Size | 1 |
