AI563
Official DistributorBy ABB
SKU
ABB1TNE968902R1103
MPN
1TNE968902R1103

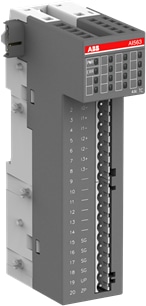

AI563: S500-eCo Analog input module. 4 AI: TC. 2-wire.
Technical Specifications
Dimensions
| Product Net Weight | 0.123 kg |
| Product Net Depth / Length | 135 mm |
| Product Net Height | 74 mm |
| Product Net Width | 34 mm |
| Gross Weight | 0.224 kg |
| Package Level 1 Depth / Length | 93 mm |
| Package Level 1 Height | 63 mm |
| Package Level 1 Width | 170 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | 4 AI: TC |
| Number of Analog Configurable I/Os | 0 |
| Analog Inputs | 4 |
| Input Signal | TC |
| Resolution | Analog Input 16 bit |
| Connection Type | Pluggable |
| Degree of Protection | Housing IP20 |
| Ambient Air Temperature | Operation 0 ... +60 °C |
| Ambient Air Temperature | Storage -40 ... +70 °C |
Additional Information
| Product Main Type | AI563 |
Why Proax for ABB AI563?
Proax is an authorized distributor of ABB AI563 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
