Official DistributorBy ABB
SKU
MPN
1SVR550519R1000
Weight
0.068 kg

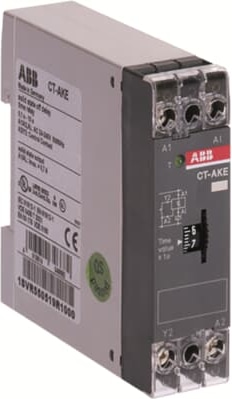

The CT-AKE is a single-function electronic time relay from the CT-E timer range. It provides an OFF-delay (delay on break) function with a time range from 0.1 s to 10 s. This time relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a solid-state output.
Technical Specifications
Dimensions
| Product Net Width | 22.5 mm |
| Product Net Height | 78 mm |
| Product Net Depth / Length | 78.5 mm |
| Product Net Weight | 0.059 kg |
Technical
| Timer Relay Type | OFF-Delay |
| Time Range | 0.1 ... 10 s |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC |
| Output | solid-state output |
| Terminal Type | Screw Terminals |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14 |
| Standards | IEC/EN 63000 |
| Standards | IEC/EN 61812-1 |
| Standards | UL 508 |
Why Proax for ABB CT-AKE?
Proax is an authorized distributor of ABB CT-AKE and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | CTAKE |
| Pack Size | 1 |
