1SVR550826R9100
Weight
0.077 kg

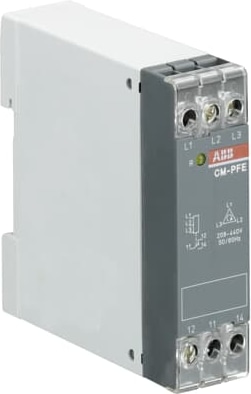

The CM-PFE.2 relay is from the CM three-phase monitors range. This relay operates with a rated control supply voltage / three-phase measuring voltage of 200-500 V AC and has a 1 c/o output (closed circuit principle) with contacts rated at 250 V / 4 A. The CM-PFE.2 monitors the phase loss and phase sequence. The corresponding threshold values are fixed. The relay is suitable for monitoring of three phase mains.
Technical Specifications
Dimensions
| Product Net Width | 22.5 mm |
| Product Net Height | 78 mm |
| Product Net Depth / Length | 78.5 mm |
| Product Net Weight | 0.067 kg |
Technical
| Function | Phase failure detection |
| Function | Phase sequence monitoring |
| Measuring Range | (L-L) 200 ... 500 V AC |
| Time Range | 500 ms start-up delay |
| Time Range | 500 ms tripping delay |
| Rated Control Supply Voltage (Us) | (L-L) 200 ... 500 V AC |
| Rated Frequency (f) | Supply Circuit 50/60 Hz |
| Output | 1 c/o (SPDT) contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 6 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 600 V |
| Degree of Protection | Housing IP50 |
| Degree of Protection | Terminals IP20 |
| Overvoltage category | III |
| Pollution degree | 3 |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A |
| Short-Circuit Protective Devices | Output Circuit NO - F Type Fuses 10 A |
| Connecting Capacity | Flexible with Ferrule 2x 0.75 ... 1.5 mm² |
| Connecting Capacity | Flexible 2x 1 ... 1.5 mm² |
| Connecting Capacity | Rigid 2x 0.75 ... 1.5 mm² |
| Tightening torque | 0.6 ... 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14 |
| Standards | IEC/EN 63000 |
| Standards | IEC/EN 60255-27 |
| Standards | IEC/EN 61000-6-2 |
| Standards | IEC/EN 61000-6-3 |
| Standards | UL 508 |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Output Circuit 250 V AC |
| Contact Rating UL/CSA | B300 |
| Connecting Capacity UL/CSA | Flexible with Ferrule 2x 18-16 AWG |
| Connecting Capacity UL/CSA | Flexible 2x 18-16 AWG |
| Connecting Capacity UL/CSA | Rigid 2x 18-16 AWG |
| Tightening Torque UL/CSA | 7.08 in·lb |
| Pilot Duty UL/CSA | B300 |
