Official DistributorBy Baumer Group
SKU

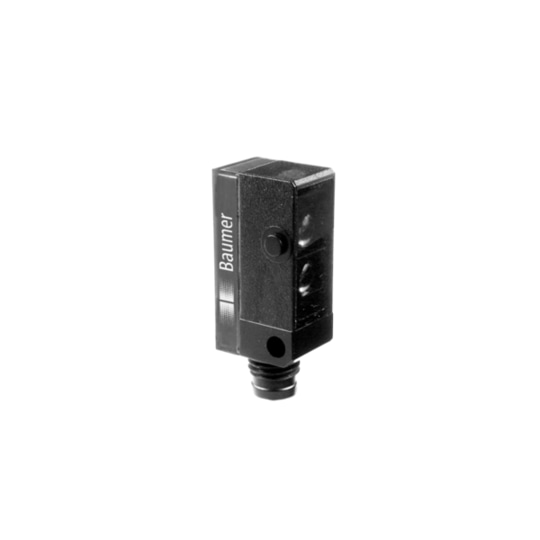

Through beam sensors - miniature
- emitter
- through beam sensor
- 5 m
- pulsed red LED
- connector M8 4 pin
- -25 … 65 °C
- IP 67
Documents
Technical Specifications
General data
| Type | Through beam sensor |
| Emitter / receiver | Emitter |
| Light Source | Pulsed red LED |
| Actual range Sb | 5 m |
| Nominal range Sn | 6 m |
| Wave length | 660 nm |
Electrical data
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 23 mA |
| Current consumption typ. | 15 mA |
| Reverse polarity protection | Yes |
Mechanical data
| Width / diameter | 10.4 mm |
| Height / length | 27 mm |
| Depth | 14 mm |
| Design | Rectangular |
| Housing Material | Plastic (ASA) |
| Front (optics) | PMMA |
| Connection types | Connector M8 4 pin |
Ambient conditions
| Operating Temperature | -25 … +65 °C |
| Protection class | IP 67 |
Why Proax for Baumer Group FSDK 10D9601/S35A?
Proax is the authorized distributor of Baumer Group FSDK 10D9601/S35A. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | FSDK10D9601S35A |
| Pack Size | 1 |
