3241216
Official DistributorSKU
PHX3241216
MPN
C-PCEI 2,5/2
Series C-PCEI

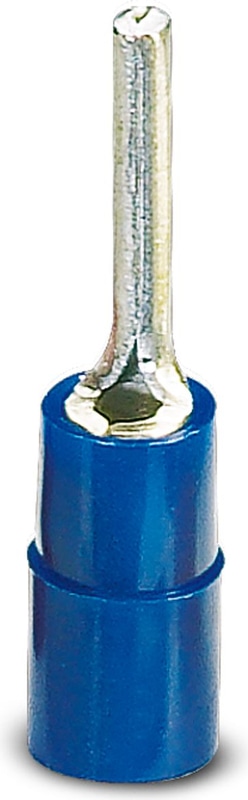

C-PCEI 2,5/2 - Cable lug
Pin cable lug, blue, 1.5 - 2.5 mm2, L1 = 12 mm, with copper sleeve incorporated, for insulation crimp
- "Easy Entry" for easy and reliable conductor entry
- Halogen-free
- Electrogalvanized
- The mechanical load capacity of the connection is significantly increased by the additionally applied copper sleeve (insulation crimp)
Technical Specifications
Electrical properties
| Fuse | yes |
Dimensions
| Length of the insulating material sleeve | 11 mm |
| Length contact range | 10.5 mm |
| Min. material thickness | 0.8 mm |
| Inner dimensions of the insulating collar | 4.5 mm |
Internal dimensions
| Internal diameter | 1.9 mm |
Material specifications
| Color | blue |
| Material | Copper |
| Flammability rating according to UL 94 | V2 |
| Coating | tin-plated |
| Insulating material | PA |
| Components | halogen-free |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 105 °C |
