2906598
Official DistributorSKU
PHX2906598
MPN
IOA FEED-THRU/EX
Weight
0.054 kg

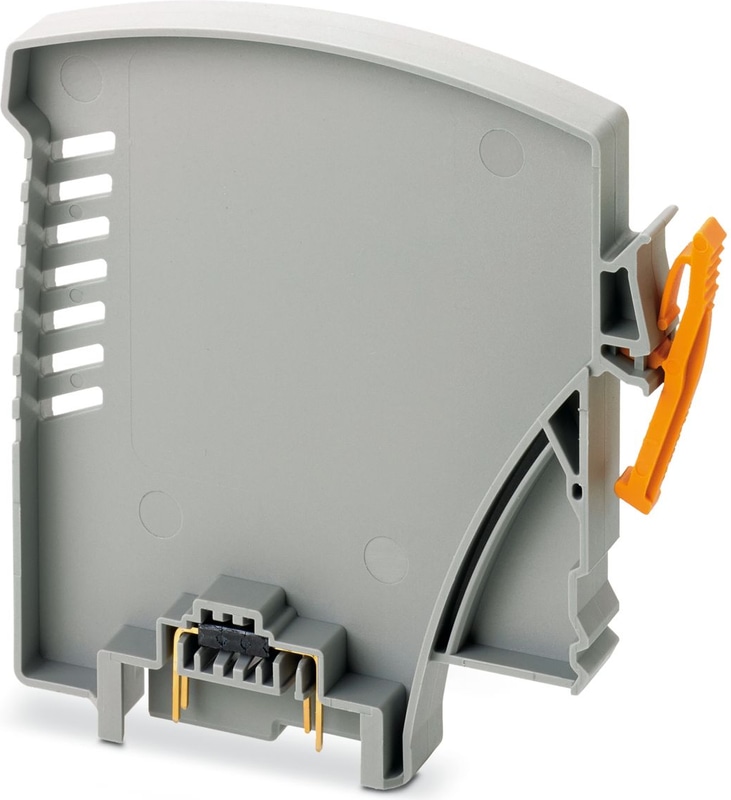

IOA FEED-THRU/EX - Feed-through plug
Feed-through terminal block for VIP I/O-Marshalling base elements for conveying field signals to or from the I/O system.
- Two-stage progressive release
Technical Specifications
Product properties
| Product family | VIP I/O-Marshalling |
| Set comprises | 1433798 IOA FEED-THRU/EX/BULK PACK |
| No. of channels | 1 |
| Operating mode | 100% operating factor |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Max. operating voltage Umax | 30 V |
| Max. permissible current | 1 A |
| Nominal voltage UN | 24 V DC |
| Max. current carrying capacity per branch | 1 A |
Output data
| Nominal Supply Voltage | 24 V DC |
| Continuous load current | 1 A |
Control circuits
| Connection Method | Pin strip |
| Number of Connections | 1 |
| Number of Positions | 13 |
Safety data
| Input voltage Ui | 30 V |
| Input current Ii | 1 A |
| Inductance Li | 0 mH |
| Capacitance Ci | 0 µF |
| Max. output voltage Uo | Ui |
| Max. output current Io | Ii |
| Max. output power Po | Pi |
Signaling
| Status display | No |
| Status display present | No |
Item dimensions
| Width | 10.3 mm |
| Height | 64.2 mm |
| Depth | 72.9 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Altitude | < 2000 m |
| Permissible humidity (operation) | 0 % ... 95 % (non-condensing) |
ATEX
| Identification | II 3G Ex nA IIC T4 Gc |
| Certificate | CSANe 21ATEX4128X |
IECEx
| Identification | Ex nA IIC T4 Gc |
| Certificate | IECEx CSAE 21.0004X |
UKEX
| Identification | II 3G Ex nA IIC T4 Gc |
| Certificate | PxCIF23UKEX2906598X |
UL, USA/Canada
| Identification | Class I, Div. 2, Groups A, B, C, D T4 |
| Identification | Class I, Zone 2, IIC T4 |
CSA, USA/Canada
| Identification | Class I, Div. 2, Groups A, B, C, D T4 |
| Identification | Class I, Zone 2, AEx nA IIC T4 Gc |
| Identification | Ex nA IIC T4 Gc |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Position | any |
Why Proax for Phoenix Contact 2906598?
Proax is an authorized distributor of Phoenix Contact 2906598 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
