IOA FEED-THRU-DO/NI/EX
Weight
0.064 kg

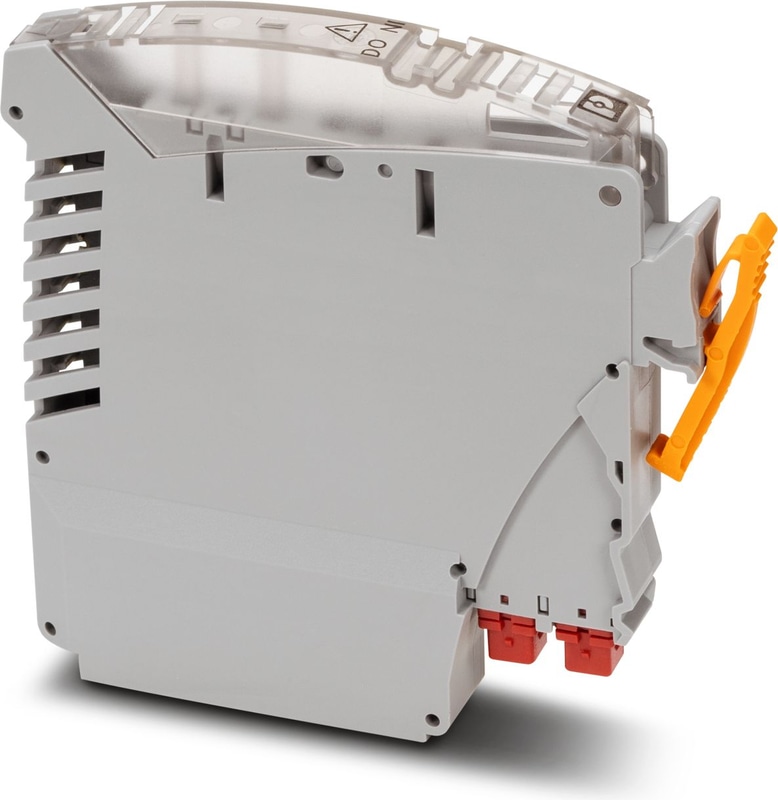

IOA FEED-THRU-DO/NI/EX - Feed-through plug
Non-incendive, Ex ic impeding devices for VIP I/O marshalling base elements. For limiting current (60 mA or 80 mA) and voltage (26.4 V DC) on digital outputs. For example, to control solenoid valves in the Ex area (zone 2, CID2).
Technical Specifications
Product properties
| Product family | VIP I/O-Marshalling |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Max. operating voltage Umax | 26.4 V |
| Max. permissible operating voltage | 26.4 V |
| Max. permissible current | 48 mA (nA, nB) |
| Max. permissible current | 58.7 mA (nC, nD) |
Safety data
| Input voltage Ui | 26.4 V |
| Input current Ii | 88 mA |
| Input power Pi | 2.32 W |
| Max. output voltage Uo | CHn+/CHn- |
| Max. output current Io | 66.8 mA (nA, nB) |
| Max. output current Io | 89.4 mA (nC, nD) |
| Safety-related maximum voltage Um | 26.4 V |
| IIC: Max. external inductivity Lo / Max. external capacitance Co | / 0.25 µF |
| IIB/IIIC/IIIB/IIIA: Max. external inductivity Lo / Max. external capacitance Co | / 1.58 µF |
| IIA: Max. external inductivity Lo / Max. external capacitance Co | / 6.3 µF |
| IIC: Max. external inductivity Lo / Max. external capacitance Co | 8.7 mH |
| IIB/IIIC/IIIB/IIIA: Max. external inductivity Lo / Max. external capacitance Co | 34.9 mH |
| IIA: Max. external inductivity Lo / Max. external capacitance Co | 69.7 mH |
Item dimensions
| Width | 10.3 mm |
| Height | 64.2 mm |
| Depth | 72.9 mm |
Material specifications
| Color | gray (RAL 7042) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Altitude | ≤ 2000 mm |
| Permissible humidity (operation) | 0 % ... 95 % (non-condensing) |
ATEX
| Identification | II 3G Ex ec IIC T4 Gc |
| Identification | II 3G Ex ic IIC T4 Gc |
| Certificate | CSANe 20ATEX3152X |
IECEx
| Identification | Ex ec IIC T4 Gc |
| Identification | Ex ic IIC T4 Gc |
| Certificate | IECEx SIR 21.0005X |
UKEX
| Identification | II 3G Ex ec IIC T4 Gc |
| Identification | II 3G Ex ic IIC T4 Gc |
| Certificate | PxCIF23UKEX1048208X |
CSA, USA/Canada
| Identification | Class I, Div. 2, Groups A, B, C, D |
| Identification | Class I, Zone 2, AEx ic IIC T4 Gc |
| Identification | ANIFW apparatus for connection to:Class I, II, III, Div. 2 Groups A, B, C, D, F, G |
| Identification | Ex ic IIC T4 Gc |
| Identification | Ex ec IIC T4 Gc |
| Certificate | CSA 21CA80047687X |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Type | Plug-in mounting |
| Assembly instructions | Plugs into VIP/...BASE... |
| Mounting Position | any |
