2904673
Official DistributorSKU
PHX2904673
MPN
TC-MACX-MCR-PTB
Weight
0.162 kg

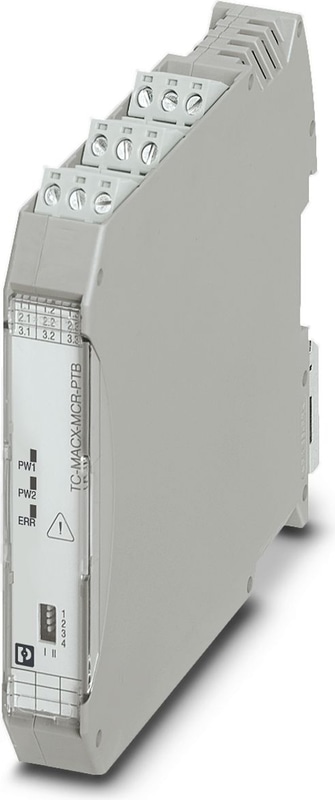

TC-MACX-MCR-PTB - Power and error message module
Power and fault signaling module with screw connection, only for use on the Termination Carrier, excluding corresponding DIN rail bus connector
- Simple or redundant supply, decoupled from diode, protected against polarity reversal
- Installation in zone 2, protection type "n" (EN 60079-15) permitted
- Error message in the event of energy supply failure or fuse fault, can be selected and deselected via DIP switch
- Bus cable error message for MACX MCR-...(2)NAM... devices connected via DIN rail connectors, can be selected and deselected via DIP switch
- Relay output (changeover contact) and blinking LED for error messages
- Supply current up to 2 A (max. 2x 2,5 AT backup fuse required)
- May only be used on the Termination Carrier
- Undervoltage detection at the input, can be selected and deselected via DIP switch (set to 19.2 V supply voltage)
Technical Specifications
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Signal
| Voltage input signal | 19.2 V DC ... 30 V DC |
| Polarization and surge protection | Yes |
Switching: Relay
| Contact switching type | 1 changeover contact |
| Contact Material | AgSnO, hard gold-plated |
| Maximum Switching Voltage | 30 V AC/DC (2 A) |
Signal
| Max. current output signal | 2 A (Redundancy range) |
| Output Voltage | Input voltage - 0.7 V |
Connection data
| Connection Method | Screw connection |
| Stripping length | 7 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
Signaling
| Status display | 1 x red LED (error) |
| Status display | 2 x green LEDs (PWR1 and PWR2) |
Dimensions
| Width | 17.5 mm |
| Height | 103.6 mm |
| Depth | 113.7 mm |
| Depth NS 35/7,5 | 114.5 mm (Snapped onto DIN rail NS 35/7,5 in accordance with EN 60715) |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 (Housing) |
| Housing Material | Polyamide (PA 6.6) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C (only on Termination Carrier) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
CE
| Certificate | CE-compliant |
ATEX
| Identification | II 3 G Ex ec nC IIC T4 Gc X |
UKCA Ex (UKEX)
| Identification | II 3G Ex ec nC IIC T4 Gc |
| Certificate | PxCIF21UKEX2904673X |
UL, USA/Canada
| Identification | UL 61010 Listed |
| Identification | Class I, Div. 2, Groups A, B, C, D T5 |
| Identification | Class I, Zone 2, Group IIC |
EMC data
| Noise immunity | EN 61000-6-2 |
| Note | When being exposed to interference, there may be minimal deviations. |
| Electromagnetic compatibility | Conformance with EMC directive |
| Noise emission | EN 61000-6-4 |
Conducted interference
| Designation | Conducted interferences |
| Standards/regulations | EN 61000-4-6 |
| Evaluation criterion | A |
Mounting
| Mounting Type | DIN rail mounting |
