Official DistributorSKU
MPN
2900162
Weight
0.888 kg
This product is Not Cancellable/Not Returnable
Series FLKM

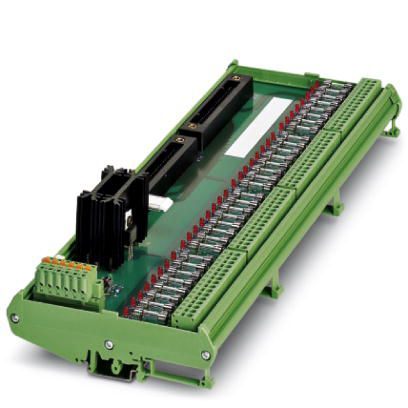

2900162 - Termination board for Yokogawa ADV 151, ADV 161, ADV 551 and ADV 561 I/O modules with a fuse for cable protection (5 x 20) and fuse failure display (LED) per channel. Redundant system connection.
Technical Specifications
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
| Width | 344 mm |
| Height | 126 mm |
| Depth | 70 mm |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Note | Voltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display. |
| Max. perm. operating voltage | 24 V DC ±10 % |
| Max. perm. current (per branch) | 100 mA |
| Max. permissible current (all branches) | 4 A |
| Mounting Position | any |
| Assembly instructions | In rows with zero spacing |
| Connection name | Field level |
| Connection Method | Screw connection |
| Conductor cross section solid | 0.2 m² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Connection name | Controller level |
| Connection Method | Yokogawa KS-compatible |
| Torque | 0.5 Nm |
| Number of Connections | 2 |
| Number of Positions | 50 |
| Note | Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331 |
| Controller | YOKOGAWA CS3000 CentumVP |
| - suitable I/O card | ADV151, ADV161, ADV551, ADV561 |
| Controller | YOKOGAWA STARDOM |
| - suitable I/O card | NFDV151, NFDV161, NFDV551, NFDV561 |
