Official DistributorSKU
MPN
FLKM-2KS50/PMT/ADV151/YCS
Weight
0.717 kg
Series FLKM

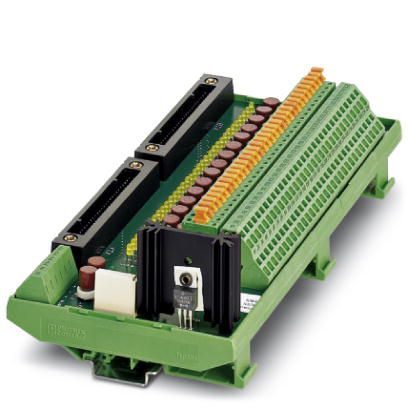

2321884 - VARIOFACE input module with screw connection, 32 channels, redundant connector plug for Yokogawa input modules ADV151, ADV161.
Technical Specifications
| Width | 232 mm |
| Height | 111 mm |
| Depth | 68 mm |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Note | Voltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display. |
| Max. perm. operating voltage | 24 V DC |
| Max. perm. current (per branch) | 63 mA AC (protected by fuse, observe derating) |
| Max. permissible current (all branches) | 2 A (protected by fuse, observe derating) |
| Mounting Position | any |
| Assembly instructions | In rows with zero spacing |
| Degree of Protection | IP00 |
| Connection name | Field level |
| Connection Method | Screw connection |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Number of Connections | 1 |
| Number of Positions | 64 |
| Connection name | Controller level |
| Connection Method | Yokogawa KS-compatible |
| Torque | 0.5 Nm |
| Number of Connections | 2 |
| Number of Positions | 50 |
| Note | Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331 |
Why Proax for Phoenix Contact 2321884?
Proax is an authorized distributor of Phoenix Contact 2321884 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
