Phoenix Contact 2800914
AllCircuit ProtectionCircuit BreakersMiniature Circuit Breakers

2800914

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX2800914
MPN
CB E1 24DC/10A S-R P
Weight
0.036 kg
Series CB-E1

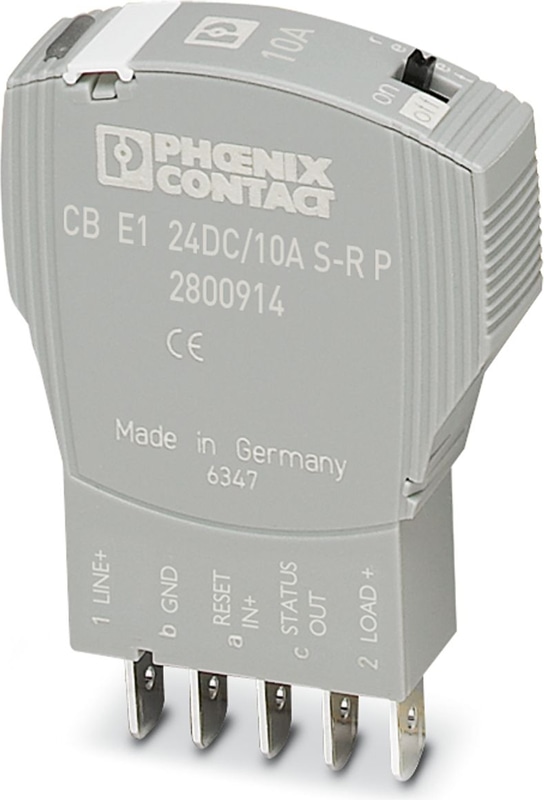

CB E1 24DC/10A S-R P - Electronic circuit breaker

Electronic circuit breaker, 1-pos., active current limitation, status output and reset input, plug for base element.

  • Individually adjustable with protective plugs
  • Protective plug with fixed nominal current value as protection against unintentional changes
  • Active current limitation to improve the capacity of the upstream power supply
  • Remote reconnection with the reset function
  • Increased system transparency with integrated remote message function
Technical Specifications

Product properties

Product familyCB E
TypeMale
Number of Positions1
No. of channels1

Insulation characteristics

Degree of pollution2

Electrical properties

Maximum Load Current8 A
Maximum current with single arrangement8 A

General

Operating Voltage24 V DC
Operating Voltage18 V DC ... 30 V DC
Nominal current IN10 A
Rated insulation voltage Ui30 V (Load circuit)
Rated surge voltage0.5 kV
Tripping methodE (electronic)
Required backup fusenot required, integrated failsafe element
Dielectric strengthmax. 30 V DC (Load circuit)
Active current limitationtyp. 1.25 x IN
Fuseelectronic
Closed circuit current I0typ. 8 mA (When switched on)
Closed circuit current I0typ. 11 mA (With status output)
Power dissipation1.46 W (Nominal operation)
Temperature derating9 A (at 50 °C)
MTBF (IEC 61709, SN 29500)7200000 h (at 25 °C with 80 % load)
MTBF (IEC 61709, SN 29500)6330000 h (at 40 °C with 80 % load)
Voltage drop100 mV (at IN)
Fail-safe element15 A DC

Load circuit

Shutdown time100 ms (see time/current characteristic curve)
Undervoltage switch-off< 14 V (typ. OFF)
Undervoltage switch-off> 17 V (typ. ON)
Max. capacitive load20000 µF

Auxiliary contact

Contact connection typePositive-switching signal output

Reset

Input voltage range7 V DC ... 30 V DC (Reset with falling edge)
Current consumptiontyp. 2.6 mA (at 24 V DC)
Pulse lengthmin. 20 ms
Voltage< 3 V DC (Low state)
Voltage> 8 V DC (High state)

Status output

Output Voltage24 V DC
Output Currentmax. 0.2 A (Short-circuit-proof)

Connection data

Maximum Load Current8 A
Connection Methodpluggable

Dimensions

Width12.3 mm
Height45 mm
Depth52 mm

Material specifications

Colorgray (RAL 7042)
Colorblack (RAL 9005)
Flammability rating according to UL 94V-0

Ambient conditions

Degree of ProtectionIP30 (Actuation area)
Ambient Temperature (Operation)-25 °C ... 50 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C
Humidity test96 h, 95 % RH, 40 °C
Vibration (Operation)3g (according to IEC 60068-2-6, Test Fc)

UL approval

IdentificationUL Listed UL 508
IdentificationUL Recognized UL 2367

Shipbuilding approval

IdentificationDNV GL

Standards and Regulations

Standard designationEMV
Standards/specificationsEN 61000-6-3
NoteInterference emission
Standard designationEMV
Standards/specificationsEN 61000-6-2
NoteNoise immunity

Mounting

Mounting Typeon base element
Accessories
  • Phoenix Contact2801014
    2801014
    CB PT BRIDGE - Bridge plug for bridging contacts 1 to 2 for CB base elements
  • Phoenix Contact2801616
    2801616
    CB RC BRIDGE - Bridge plug for bridging contacts 11 to 14 for CB base elements
  • Phoenix Contact3030336
    3030336
    FBS 2-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 2, color: red
  • Phoenix Contact3030242
    3030242
    FBS 3-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 3, color: red
  • Phoenix Contact3030255
    3030255
    Plug-in bridge, pitch: 6.2 mm, number of positions: 4, color: red
  • Phoenix Contact3030349
    3030349
    FBS 5-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 5, color: red
  • Phoenix Contact3030271
    3030271
    FBS 10-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 10, color: red
  • Phoenix Contact3030365
    3030365
    Plug-in bridge, pitch: 6.2 mm, number of positions: 20, color: red
  • Phoenix Contact3032224
    3032224
    FBS 50-6 - Plug-in bridge, pitch: 6.2 mm, number of positions: 50, color: red
  • Phoenix Contact1212124
    1212124
    CUTFOX-FBS - Cutting tool, for separating individual jumper bars from FBS ... plug-in bridges and EB ... insertion bridges
  • Phoenix Contact0809735
    0809735
    Zack Marker strip, flat - ZBF 12:UNBEDRUCKT
