2800908
Official DistributorSKU
PHX2800908
MPN
CB E1 24DC/1A S-R P
Weight
0.034 kg
This product is Not Cancellable/Not Returnable
Series CB-E1

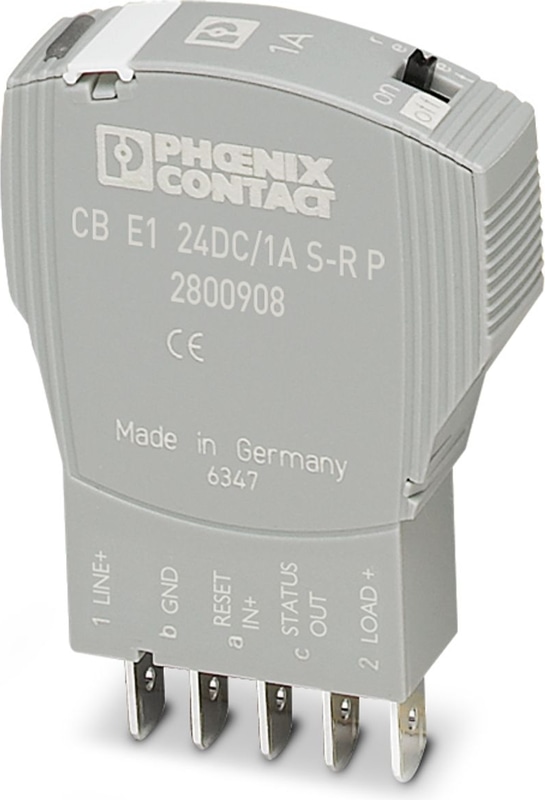

CB E1 24DC/1A S-R P - Electronic circuit breaker
Electronic circuit breaker, 1-pos., active current limitation, status output and reset input, plug for base element.
- Individually adjustable with protective plugs
- Protective plug with fixed nominal current value as protection against unintentional changes
- Active current limitation to improve the capacity of the upstream power supply
- Remote reconnection with the reset function
- Increased system transparency with integrated remote message function
Technical Specifications
Notes
| General | When mounted in rows without convection cooling, the nominal device current should only be led to a maximum of 80% due to the thermal effect during continuous operation (100% operating factor).Special precautionary measures must be taken in systems or machines, to prevent components from restarting (e.g., use of a safety PLC).Parallel connection of multiple circuit breakers is not permitted. |
Product properties
| Product family | CB E |
| Type | Male |
| Number of Positions | 1 |
| No. of channels | 1 |
Insulation characteristics
| Degree of pollution | 2 |
General
| Operating Voltage | 24 V DC |
| Operating Voltage | 18 V DC ... 30 V DC |
| Nominal current IN | 1 A |
| Rated surge voltage | 0.5 kV |
| Tripping method | E (electronic) |
| Required backup fuse | not required, integrated failsafe element |
| Dielectric strength | max. 30 V DC (Load circuit) |
| Active current limitation | typ. 1.25 x IN |
| Fuse | electronic |
| Closed circuit current I0 | typ. 8 mA (When switched on) |
| Closed circuit current I0 | typ. 11 mA (With status output) |
| Power dissipation | 0.4 W (Nominal operation) |
| Temperature derating | 1 A (at 50 °C) |
| MTBF (IEC 61709, SN 29500) | 8320000 h (at 25 °C with 80 % load) |
| MTBF (IEC 61709, SN 29500) | 7410000 h (at 40 °C with 80 % load) |
| Voltage drop | 140 mV (at IN) |
| Fail-safe element | 2 A DC |
Load circuit
| Shutdown time | 800 ms (see time/current characteristic curve) |
| Undervoltage switch-off | < 14 V (typ. OFF) |
| Undervoltage switch-off | > 17 V (typ. ON) |
| Max. capacitive load | 20000 µF |
Auxiliary contact
| Contact connection type | Positive-switching signal output |
Reset
| Input voltage range | 7 V DC ... 30 V DC (Reset with falling edge) |
| Current consumption | typ. 2.6 mA (at 24 V DC) |
| Pulse length | min. 20 ms |
| Voltage | < 3 V DC (Low state) |
| Voltage | > 8 V DC (High state) |
Status output
| Output Voltage | 24 V DC |
| Output Current | max. 0.2 A (Short-circuit-proof) |
Connection data
| Connection Method | pluggable |
Dimensions
| Width | 12.3 mm |
| Height | 45 mm |
| Depth | 52 mm |
| Complete module width | 12.3 mm |
| Complete module height | 90 mm |
| Complete module depth | 77.3 mm |
Material specifications
| Color | gray (RAL 7042) |
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
Ambient conditions
| Degree of Protection | IP30 (Actuation area) |
| Ambient Temperature (Operation) | -25 °C ... 50 °C (non-condensing) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Humidity test | 96 h, 95 % RH, 40 °C |
| Vibration (Operation) | 3g (according to IEC 60068-2-6, Test Fc) |
UL approval
| Identification | UL Listed UL 508 |
| Identification | UL Recognized UL 2367 |
Shipbuilding approval
| Identification | DNV GL |
Standards and Regulations
| Standard designation | EMV |
| Standards/specifications | EN 61000-6-3 |
| Note | Interference emission |
| Standard designation | EMV |
| Standards/specifications | EN 61000-6-2 |
| Note | Noise immunity |
Mounting
| Mounting Type | on base element |
Accessories
CUTFOX-FBS - Cutting tool, for separating individual jumper bars from FBS ... plug-in bridges and EB ... insertion bridges
