2202873
Official DistributorSKU
PHX2202873
MPN
ME MAX 17,5 GEH-R CL G 2-2KMGY
Weight
0.025 kg
Series ME-MAX

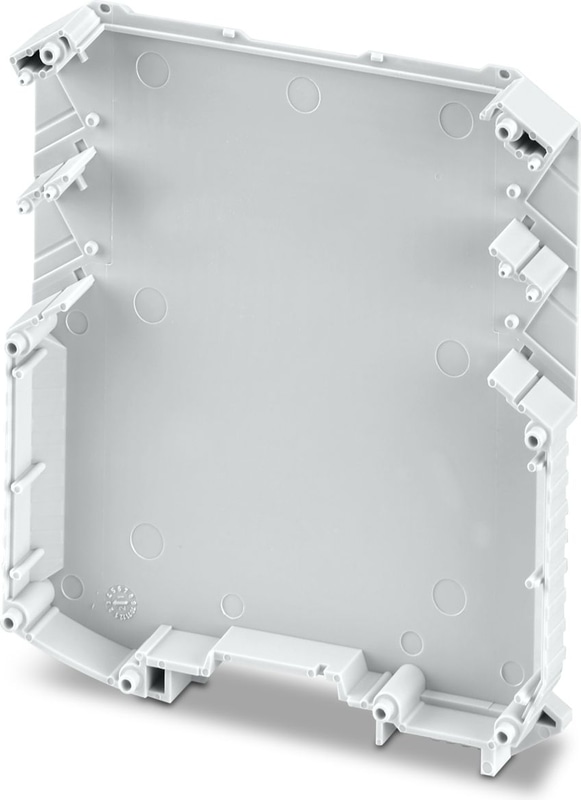

ME MAX 17,5 GEH-R CL G 2-2KMGY - Housing half shell
DIN rail housing, Housing half shell (right), tall design, without vents, width: 11.3 mm, height: 99 mm, depth: 112.85 mm, color: light grey (similar RAL 7035), cross connection: DIN rail connector (optional)
- Easy installation
- Variety of connection technology
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
| Recommendation | Material of contact pads for bus connector, galvanic gold (hard gold) |
Product properties
| Housing type | DIN rail housing |
| Housing series | ME-MAX |
| Product family | ME MAX.. G 2-2 |
| Number of rows | 2 |
| Type | Housing half shell (right), tall design |
| Ventilation openings present | no |
Dimensions
| Width | 11.3 mm |
| Height | 99 mm |
| Depth | 112.85 mm |
| Depth from top edge of DIN rail | 107 mm |
PCB design
| PCB thickness | 1.4 mm ... 1.8 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Housing Material | Polyamide |
| Surface characteristics | untreated |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
PCB data
| Type of PCB mount | Latching |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | Vertical (horizontal DIN rail) |
Why Proax for Phoenix Contact 2202873?
Proax is an authorized distributor of Phoenix Contact 2202873 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
