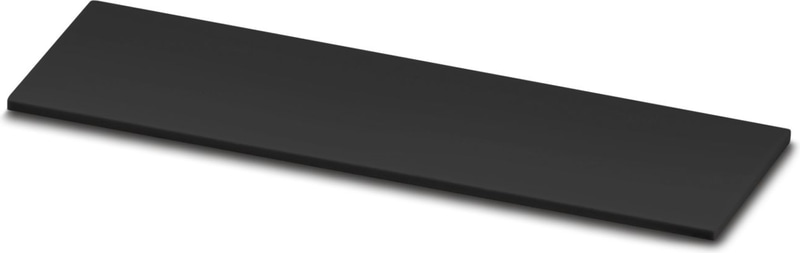

The figure shows a similar product
2707288
Official DistributorSKU
PHX2707288
MPN
ME MAX 17,5 PLATE BK
Weight
0.001 kg
Series ME-MAX
ME MAX 17,5 PLATE BK - Insertion plate
DIN rail housing, Insertion plate, width: 14.2 mm, height: 73.6 mm, depth: 1 mm, color: black (similar RAL 9005)
- Easy, tool-free mounting
- Plastic in accordance with UL94 V0: for more rigorous flammability requirements
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
Product properties
| Housing type | DIN rail housing |
| Housing series | ME-MAX |
| Product family | ME MAX 17,5.. |
| Type | Insertion plate |
| Ventilation openings present | no |
Dimensions
| Width | 14.2 mm |
| Height | 73.6 mm |
| Depth | 1 mm |
Material specifications
| Color (Housing) | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Housing Material | Polyamide |
| Surface characteristics | untreated |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
PCB data
| Type of PCB mount | Latching |
Mounting
| Mounting Type | Slot |
