2202552
Official DistributorSKU
PHX2202552
MPN
EH 45F/16 DEV-PCB
Weight
0.011 kg
This product is Not Cancellable/Not Returnable
Series EH

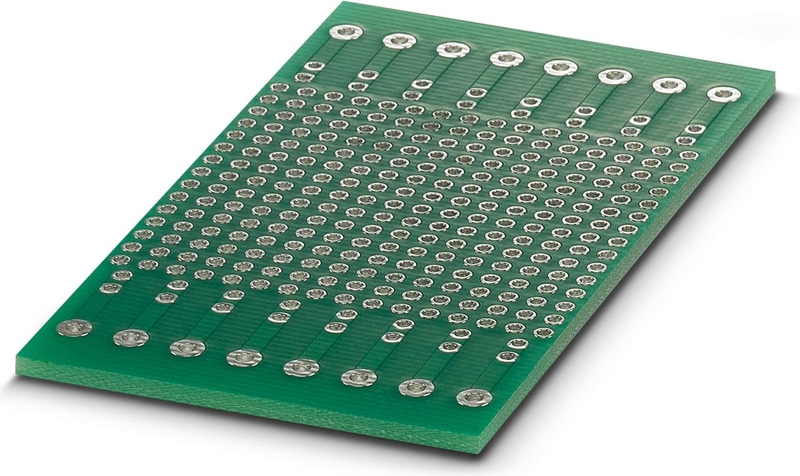

EH 45F/16 DEV-PCB - PCB
Perfboard for the EH 45 FLAT DEV-KIT; for MKDS-5,08 terminal blocks; suitable for manual soldering
- Hole matrix PCB for self-assembly
- Hole matrix dimension: 2.54 mm
- Easy installation
Technical Specifications
Product properties
| Housing type | DIN rail housing |
| Housing series | EH |
| Product family | EH |
Material specifications
| Color | green |
| Housing Material | FR 4-21 |
Ambient conditions
| Ambient Temperature (Operation) | 110 °C |
Why Proax for Phoenix Contact 2202552?
Proax is an authorized distributor of Phoenix Contact 2202552 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
