2202548
Official DistributorSKU
PHX2202548
MPN
ME-IO 18,8/28 TBUS DEV-PCB
Weight
0.017 kg
Series ME-IO

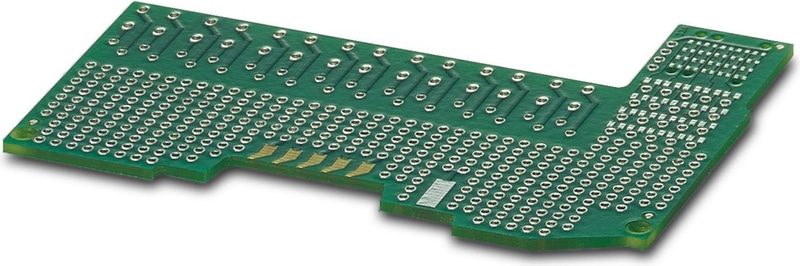

ME-IO 18,8/28 TBUS DEV-PCB - PCB
Perfboard for the ME-IO 18,8 DEV-KIT; for HSCH 2,5 header; ideal for manual soldering
- Hole matrix PCB for self-assembly
- Hole matrix dimension: 2.54 mm
- Easy installation
Technical Specifications
Product properties
| Housing type | DIN rail housing |
| Housing series | ME-IO |
| Product family | ME-IO |
| Max. number of positions | 28 (pitch: 5 mm) |
Dimensions
| Width | 1.6 mm |
| Height | 98.2 mm |
| Depth | 66.8 mm |
PCB design
| PCB thickness | 1.4 mm ... 1.8 mm |
Material specifications
| Color | green |
| Housing Material | FR 4-21 |
Ambient conditions
| Ambient Temperature (Operation) | 110 °C (depending on power dissipation) |
PCB data
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
Mounting
| Mounting Position | Vertical (horizontal DIN rail) |
Why Proax for Phoenix Contact 2202548?
Proax is an authorized distributor of Phoenix Contact 2202548 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
