UM-BASIC 108 100MM DEV-KIT KMGY
Weight
0.186 kg
Series UM-BASIC
UM-BASIC 108 100MM DEV-KIT KMGY - Housing set

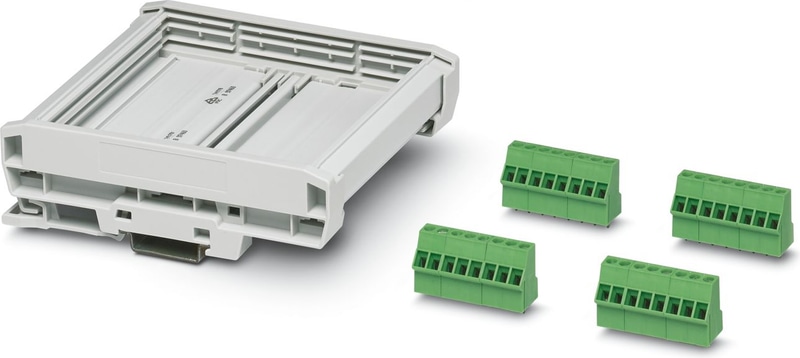

DEV-KIT UM-BASIC: contains 1 x UM-BASIC 100MM profile housing and PCB terminal blocks (SMKDS), supplied in individual parts
- Different base profiles, each with three PCB levels
- Module covers of different geometries can be positioned in any way
- Compatibility with many standard connection technologies
- Easy device mounting thanks to snap-mount principle (the sides are fixed without the aid of tools)
- High degree of flexibility, thanks to freely positionable covering hoods
Technical Specifications
Notes
| Assembly instruction: | Please observe the assembly instructions available in the download area. |
Product properties
| Housing type | Press-drawn section housings |
| Housing series | UM-BASIC |
| Type | incl. 2 lateral elements |
| Ventilation openings present | no |
Dimensions
| Width | 104 mm |
| Height | 127.8 mm |
| Depth from top edge of DIN rail | 32.45 mm |
| Dimensions | 108 mm x 100 mm (PCB dimensions) |
PCB design
| PCB thickness | 1.4 mm ... 1.8 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| Insulating material | PVC |
| Housing Material | PVC / PA |
| Surface characteristics | untreated |
Ambient conditions
| Ambient Temperature (Operation) | -15 °C ... 50 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 50 °C |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Relative humidity (storage/transport) | 95 % |
PCB data
| Number of PCB holders | 3 |
| Type of PCB mount | Insertion/securing with additional elements |
| Total PCB surface | 8630 mm² |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | parallel to the DIN rail |
Packaging specifications
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
