2202046
Official DistributorSKU
PHX2202046
MPN
UM-BASIC/PRO 122 COVER-R KMGY
Weight
0.02 kg
This product is Not Cancellable/Not Returnable
Series UM-BASIC-PRO

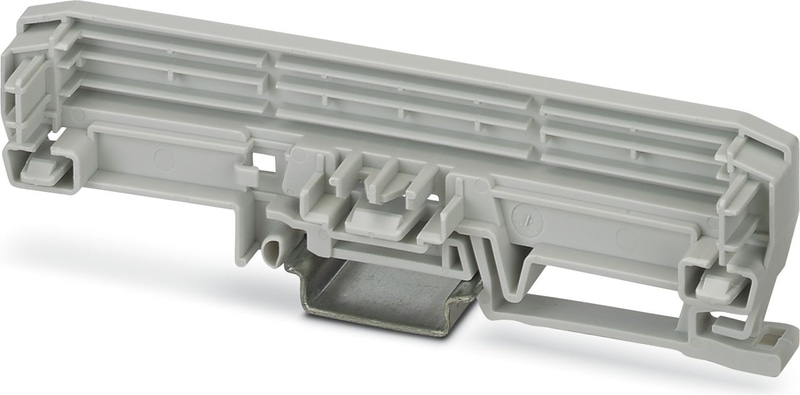

UM-BASIC/PRO 122 COVER-R KMGY - Lateral element
Lateral element (right) with mounting foot for DIN rails for UM-BASIC profiles with a PCB width of 122 mm
- Different base profiles, each with three PCB levels
- Module covers of different geometries can be positioned in any way
- Compatibility with many standard connection technologies
- Easy device mounting thanks to snap-mount principle (the sides are fixed without the aid of tools)
- High degree of flexibility, thanks to freely positionable covering hoods
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
Product properties
| Housing type | Press-drawn section housings |
| Housing series | UM-BASIC |
| Product family | UM-BASIC/PRO 122 |
| Type | Side element (right) with mounting foot for the DIN rail |
| Ventilation openings present | no |
Dimensions
| Width | 19.5 mm |
| Height | 142.3 mm |
| Depth | 39.45 mm |
| Depth from top edge of DIN rail | 32.45 mm |
PCB design
| PCB thickness | 1.4 mm ... 1.8 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polyamide |
| Surface characteristics | untreated |
Glow-wire test
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
Thermal stability / ball thrust test
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 125 °C |
| Test duration | 1 h |
| Force | 20 N |
Mechanical strength / tumbling barrel
| Specification | IEC 60068-2-31:2008-05 |
| Height of fall | 50 cm |
| Frequency | 50 |
Degree of protection (IP code)
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
PCB data
| Number of PCB holders | 3 |
| Type of PCB mount | Insertion/securing with additional elements |
| PCB surface | 700 mm² ... 1200 mm² (per basic profile cm) |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
Mounting
| Mounting Type | DIN rail mounting/wall mounting (with optional mounting flange) |
Packaging specifications
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
Accessories
Why Proax for Phoenix Contact 2202046?
Proax is an authorized distributor of Phoenix Contact 2202046 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
