SACC-DSI-FS-5CON-L180/SH BU
Weight
0.015 kg
Series SACC-DSI-FS

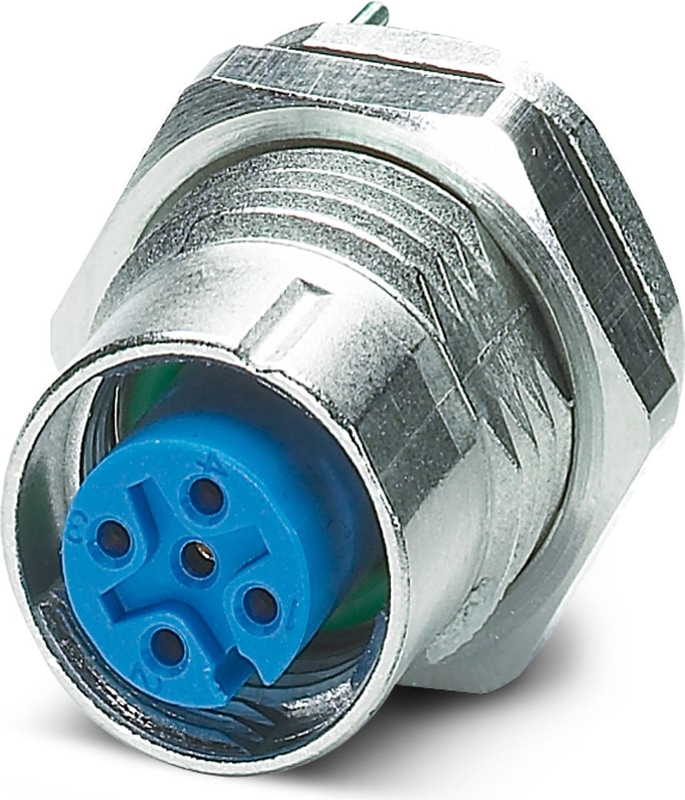

SACC-DSI-FS-5CON-L180/SH BU - Device connector rear mounting
Device connector rear mounting, 5-position, Socket, straight, M12-SPEEDCON, coding: A, Rear mounting, M16 x 1.5, Solder pins, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239852
- Easy PCB assembly: one-piece connectors for wave soldering
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission reliability: optional shield connection to the housing by means of shield contact
Technical Specifications
Notes
| Order information: | Lock nut is included in the scope of delivery |
Mounting
| Mounting Type | Rear mounting M16 x 1.5 With flat nut |
| Assembly instructions | With flat nut |
Product properties
| Number of Positions | 5 |
| Shielded | yes |
| Coding | A |
| Thread type | M12 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Dimensions
| Length of the solder pin | 6 mm |
| Length of the solder pin | 6 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM |
| Contact Material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Zinc die-cast, nickel-plated |
Electrical properties
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 60 V |
| Nominal current IN | 4 A |
Conductor connection
| Connection Method | Solder pins |
| Contact connection type | Socket |
Connection 1
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M12 |
| Head locking type | SPEEDCON |
| Coding | A |
Ambient conditions
| Degree of Protection | IP67 (When plugged in) |
| Degree of Protection | IP65 (When plugged in) |
| Degree of Protection | IP65/IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug / socket) |
Standards and Regulations
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
