Phoenix Contact 1457885

1457885

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX1457885
MPN
SACC-DSI-FS-4CON-L180/SH YE
Weight
0.014 kg

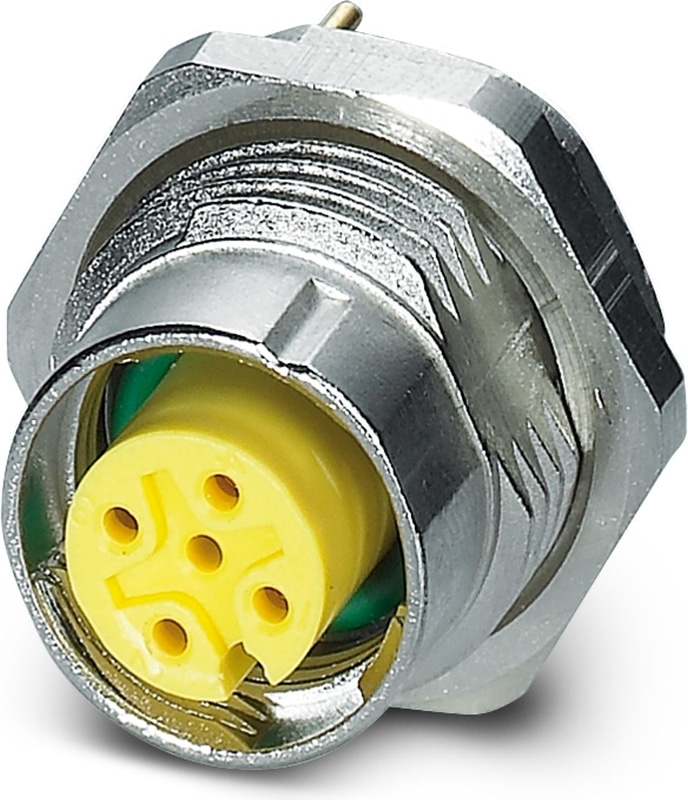

SACC-DSI-FS-4CON-L180/SH YE - Device connector rear mounting

Bus system flush-type socket, with yellow contact carrier, 4-pos., M12 SPEEDCON, shielded, A-coded, rear/screw mounting with M16 thread, with straight solder connection

  • Easy PCB assembly: one-piece connectors for wave soldering
  • All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
  • For high transmission reliability: optional shield connection to the housing by means of shield contact
Technical Specifications

Mounting

Mounting TypeRear mounting Pg9 With flat nut
Assembly instructionsWith flat nut

Product properties

Number of Positions4
Shieldedyes
CodingA

Insulation characteristics

Overvoltage categoryII
Degree of pollution3

Dimensions

Length of the solder pin6 mm
Length of the solder pin6 mm

Material specifications

Flammability rating according to UL 94V0
Seal materialNBR
Contact MaterialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material for screw connectionZinc die-cast, nickel-plated

Electrical properties

Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN250 V
Nominal current IN4 A

Conductor connection

Connection MethodSolder pins

Connection 1

Head designSocket
Head cable outletstraight
Head thread typeM12
Head locking typeSPEEDCON
CodingA

Ambient conditions

Degree of ProtectionIP67 (When plugged in)
Degree of ProtectionIP65 (When plugged in)
Degree of ProtectionIP65/IP67
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug / socket)

M12

Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

Why Proax for Phoenix Contact 1457885?

Proax is an authorized distributor of Phoenix Contact 1457885 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size20
