1418755
Official DistributorSKU
PHX1418755
This product is Not Cancellable/Not Returnable

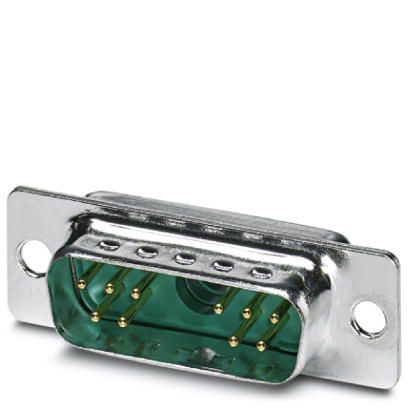

D-SUB contact insert - CUC-DSI-S1STZ-S/DSLK1CP10S
D-SUB contact insert, with 10 signal contacts and 1 power contact, with solder cups, straight, plug, attachment via 3 mm bore hole
- Various connection methods for every application
- UL-approved contact inserts
- Standard-compliant pin connector pattern
Technical Specifications
Mechanical characteristics
| Connection Method | Solder cups |
| Degree of pollution | 1 |
| Weight | 13.6 g |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient Temperature (Operation) | -55 °C ... 130 °C |
Material data
| Contact Material | Copper alloy |
| Contact carrier material | Polyester GF |
| Housing Material | Steel, tin-plated |
| Width | 30.8 mm |
| Height | 12.5 mm |
| Depth | 17.2 mm |
| Mounting Type | 3 mm hole |
Electrical characteristics
| Number of Positions | 11 |
| Rated current | 5 A |
| Degree of pollution | 1 |
| Rated voltage (III/3) | 400 V |
| Insertion/withdrawal cycles | ≥ 200 |
Standards and Regulations
| Standards/specifications | DIN 41652 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
Why Proax for Phoenix Contact 1418755?
Proax is an authorized distributor of Phoenix Contact 1418755 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
