1418731
Official DistributorSKU
PHX1418731
This product is Not Cancellable/Not Returnable
This product has been discontinued

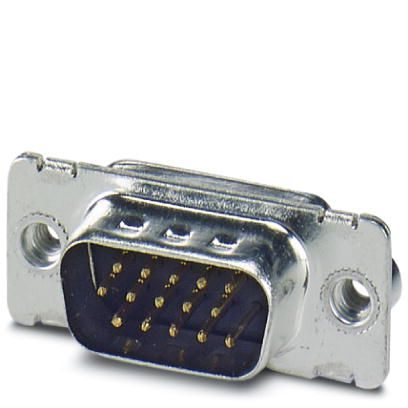

D-SUB contact insert - CUC-DSI-C1STZ-S/DSLSB9 HD
D-SUB contact insert, degree of protection: IP20, number of positions: 15, material: Steel, connection method: Solder pins
- Various connection methods for every application
- Standard-compliant pin connector pattern
Technical Specifications
Mechanical characteristics
| Connection Method | Solder pins |
| Number of slots | 1 |
| Degree of pollution | 2 |
| Weight | 2.22 g |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient Temperature (Operation) | -55 °C ... 105 °C |
Material data
| Contact Material | Copper alloy |
| Contact carrier material | Glass-fiber reinforced thermoplastics, UL 94 V0 |
| Housing Material | Steel |
| Housing surface material | tin-plated |
| Width | 16.4 mm |
| Height | 12.5 mm |
| Length | 30.8 mm |
| Depth | 17.2 mm |
| Mounting Type | 4-40 UNC thread |
Electrical characteristics
| Number of Positions | 15 |
| Rated current | 3 A |
| Degree of pollution | 2 |
| Test voltage | 1000 V AC |
| Insertion/withdrawal cycles | 50 |
Standards and Regulations
| Standards/specifications | DIN 41652 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
Why Proax for Phoenix Contact 1418731?
Proax is an authorized distributor of Phoenix Contact 1418731 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
