1415184
Official DistributorSKU
PHX1415184
MPN
G-INB-M32-M68N-NEPDS-S
Weight
0.372 kg
Series G-INB-M

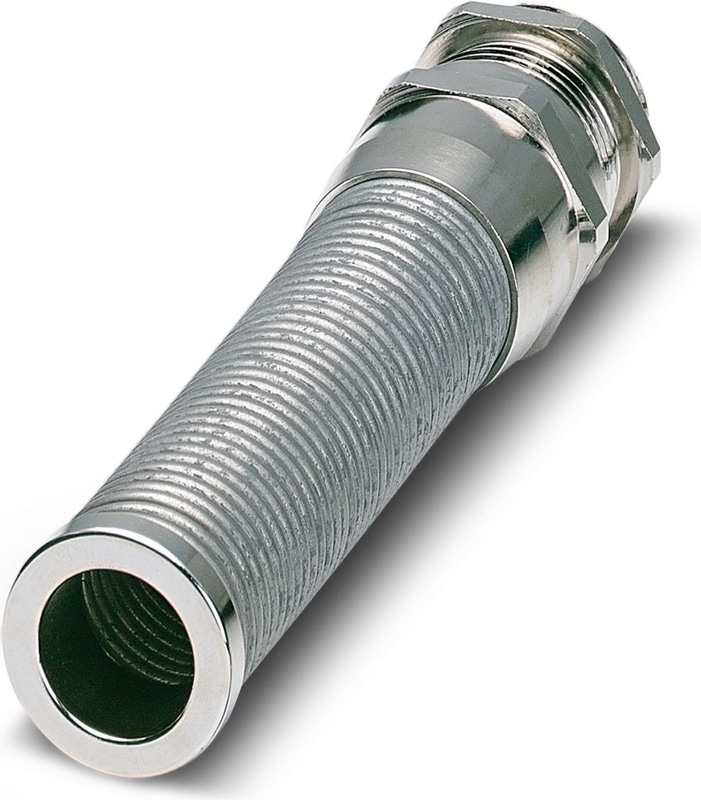

G-INB-M32-M68N-NEPDS-S - Cable gland
Cable gland, material for screw connection: Brass, nickel-plated, application: Standard, external cable diameter 13 mm ... 21 mm, shielding: no, connecting thread: M32 x 1.5, color: silver, with bend protection sleeve, with O-ring
- Weatherproof sealing material
- Halogen-free
Technical Specifications
Product properties
| Application | Standard |
| No. of conductors | 1 |
| Type | with bend protection sleeve |
| Manufacturer | WISKA |
| Manufacturer Designation | EMSKVS 32 |
| Shielded | no |
| Execution of the strain relief | A |
Dimensions
| Length | 146 mm |
| Length of the connecting thread | 8 mm |
| Hole diameter | 32.1 mm ... 32.3 mm |
| Wrench size, union nut | 36 mm |
| Wrench size, support | 36 mm |
| Hexagon angular dimension | 40 mm |
| Thread type connection side | M32 x 1.5 |
| Thread pitch | 1.5 mm |
Material specifications
| Color | Brass |
| Material | PA |
| Seal material | EPDM |
| Seal material | EPDM |
| Material for screw connection | Brass, nickel-plated |
Cable/line
| External cable diameter Cable 1 | 13 mm ... 21 mm |
| External Cable Diameter | 14.6 mm ... 19.5 mm (for UL 514 B) |
| Halogen-free | yes |
Characteristics
| Category of shock impact | 6 |
| Design, Strain relief | A |
Ambient conditions
| Degree of Protection | IP68 (5 bar / 0.5 h) |
| Degree of Protection | IP69 (DIN EN 60529 / IEC 60529) |
| Ambient Temperature (Operation) | -40 °C ... 100 °C (static) |
Accessories
Why Proax for Phoenix Contact 1415184?
Proax is an authorized distributor of Phoenix Contact 1415184 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
