1415171
Official DistributorSKU
PHX1415171
MPN
G-INB-M12-S68N-PEPDS-LG
Weight
0.011 kg
Series G-INB-M

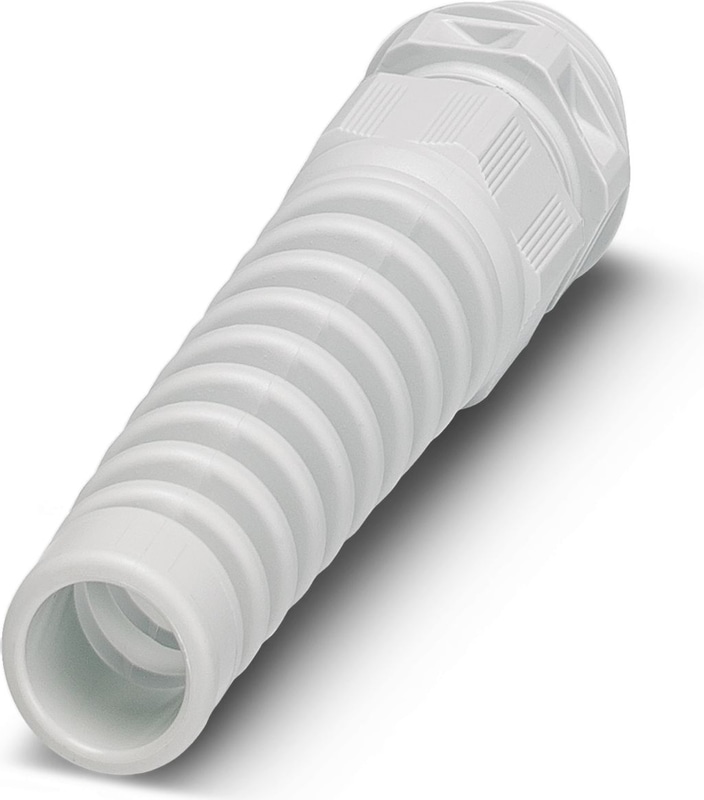

G-INB-M12-S68N-PEPDS-LG - Cable gland
Cable gland, material for screw connection: PA, application: Standard, external cable diameter 3 mm ... 7 mm, shielding: no, connecting thread: M12 x 1.5, color: lightgrey RAL 7035, with bend protection sleeve
- Glow-wire test: 750°C
- Weatherproof sealing material
- Halogen-free
Technical Specifications
Product properties
| Application | Standard |
| No. of conductors | 1 |
| Type | with bend protection sleeve |
| Manufacturer | WISKA |
| Manufacturer Designation | ESKVS 12 |
| Shielded | no |
| Execution of the strain relief | A |
Dimensions
| Length | 72 mm |
| Length of the connecting thread | 9 mm |
| Hole diameter | 12.1 mm ... 12.2 mm |
| Wrench size, union nut | 16 mm |
| Wrench size, support | 16 mm |
| Hexagon angular dimension | 18 mm |
| Thread type connection side | M12 x 1.5 |
| Thread pitch | 1.5 mm |
Material specifications
| Color | light grey (RAL 7035) |
| Material | PA |
| Seal material | EPDM |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 750 |
| Material for screw connection | PA |
Cable/line
| External cable diameter Cable 1 | 3 mm ... 7 mm |
| External Cable Diameter | 4.1 mm ... 6 mm (for UL 514 B) |
| Halogen-free | yes |
Characteristics
| Category of shock impact | 2 |
| Design, Strain relief | A |
Ambient conditions
| Degree of Protection | IP68 (5 bar / 0.5 h) |
| Degree of Protection | IP69 (DIN EN 60529 / IEC 60529) |
| Ambient Temperature (Operation) | -40 °C ... 100 °C (static) |
Accessories
Why Proax for Phoenix Contact 1415171?
Proax is an authorized distributor of Phoenix Contact 1415171 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
